| CPU Model |
Intel® Atom® x6425E 4-core/4-thread processor, burst up to 3.0 GHz |
| CPU Architecture |
64-bit x86 |
| Hardware Encryption Engine |
✓ (AES-NI) |
| Memory |
8 GB on board (non-expandable) |

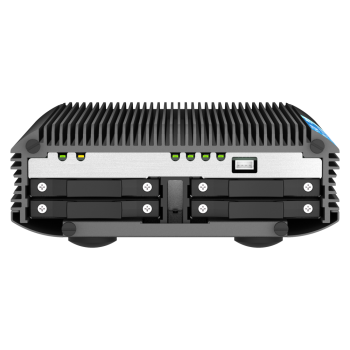

| Drive Bays |
4 x 2.5-inch SATA 6Gb/s, 3Gb/s |
| Compatible Drive Type |
2.5-inch SATA solid state drives |
| Hot Swappable Drive |
✓ |
| Power Supply Unit / Adapter |
1. External Power Adapter, 90W and above, AC 100-240V 2. 9-36V DC input |
| Maximum Memory Capacity |
8 GB on board (non-expandable) |
| Form Factor (RU) |
Set-Top design |

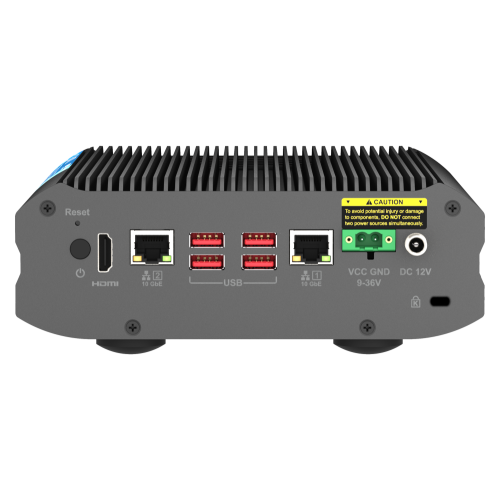

| RJ-45 10GbE LAN Port |
2 x 10GBASE-T (10G/5G/2.5G/1G) |
| Graphic Processors |
Intel® UHD Graphics for 10th Gen Intel® Processors |
| Floating Point Unit |
✓ |
| Hardware-accelerated Transcoding |
✓ |
| Flash Memory |
4GB (Dual boot OS protection) |
| SSD Cache Acceleration Support |
✓ |
| Wake on LAN (WOL) |
✓ |
| Jumbo Frame |
✓ |
| USB 3.2 Gen 2 (10Gbps) Port |
4 |
| HDMI™ Output |
1, HDMI™ 1.4b (up to 3840 x 2160 @ 30Hz) |

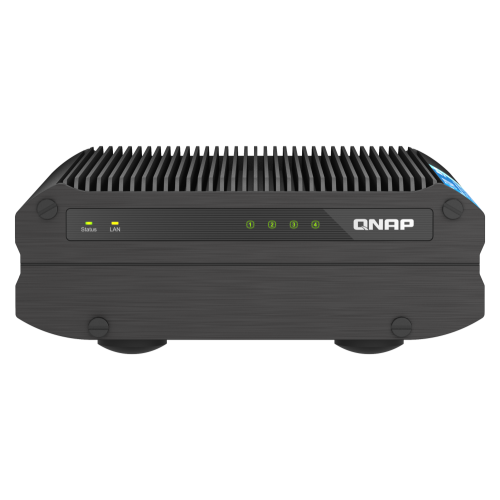

| LED Indicators |
Power/Status, LAN, SSD 1-4 |
| Buttons |
Power, Reset |
| Power Consumption: Disk Standby Mode |
17.628 |
| Power Consumption: Operating Mode, Typical |
25.592 |
| Operating System |
QTS 5.2.6 |
