COSEC PATH DCCE

Brand: Matrix
Product Code: DCCE
Availability: 10
Weight: 0.15kg
Dimensions: 3.30cm x 5.00cm x 13.60cm

EM Proximity Card Based Compact Door Controller

Call for Price:
- +

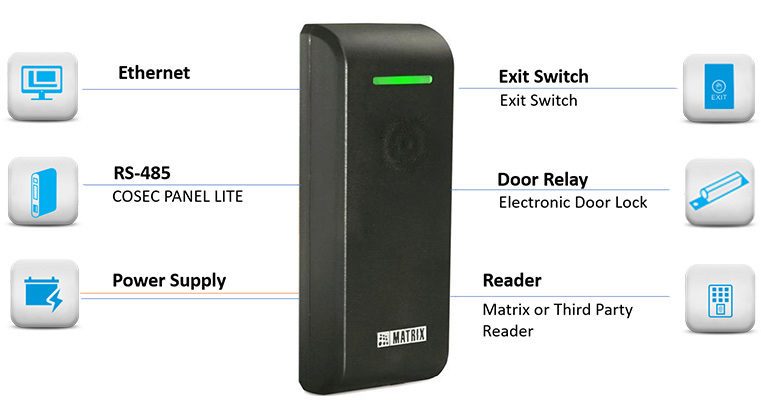

interface diagram cosec path dccx

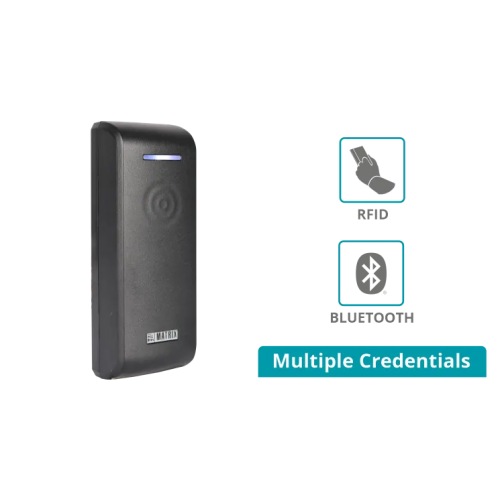

Multiple User Credentials

RFID Cards
Mobile through BLE
Dual Verification for High-Security Applications
Multiple user credentials available in Cosec Path Series Door Controllers

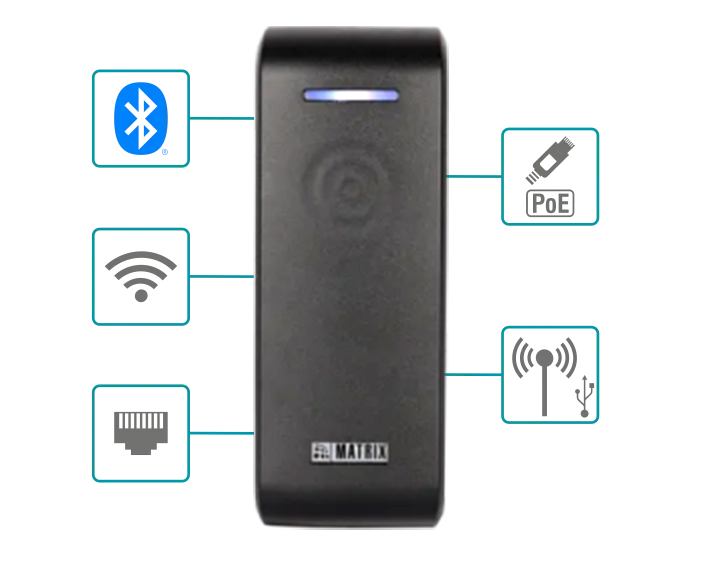

Multiple Connectivity Options

Built-in Bluetooth, Wi-Fi, PoE, Ethernet

Use Existing IT Infrastructures to Meet Future Requirements

Low IT Infrastructure Cost and Future Proof

multiple-connectivity-options

Higher User and Template Capacity

Stores up to 50,000 User Profiles

Event Log Capacity of 5,00,000

higher-user-and-template-capacity

Features

secured-communication-01

Secured Communication

Secure data transmission with SSL encryption, providing a highly reliable solution that is snoop-proof and hack-proof

Tamper Detection

Tamper Detection

Provides better security with tamper detection, instantly alerting to any vandalism acts, ensuring enhanced protection for devices

secured-communication-01

Weather Resistance with IP65

Offers weather resistance with an IP65 rating, providing reliable ingress protection against dust and water, making it ideal for outdoor applications

Tamper Detection

Superior Design

Features a superior design that not only enhances the product's lifespan but also significantly improves performance, all while providing an appealing aestheti

secured-communication-01

Plug and Play

Offers plug and play installation with built-in web software, ensuring fewer touches, simple management, and significantly reduced installation time

Tamper Detection

Auto Push Event Data

Eliminates the need to download event data individually, saving valuable time for admin and ensuring an accurate employee attendance process at all times








Access Control
Credential Support Bluetooth® (BLE) and RFID Card
Ingress Protection IP65
Card EM Proximity Card
Max. Users 50,000
Event Buffer 500,000
Wi-Fi Yes
Bluetooth® Yes
Ethernet Yes (10/100 Mbps)
PoE Yes (IEEE 802.3 af)
RS-232 Yes
RS-485 Yes
Wiegand Yes (Selectable IN/OUT) IN: 26 Bit format OUT: Configurable
Exit Switch Port Yes
Door Status Sense Yes(2State)
Door Lock Relay Yes
Door Lock Power 12V DC @ 0.5A (Power to External Lock from Device) 30V DC @ 1A (Power to Lock from External power source)
Reader Interface Types RS-232 and Wiegand
CPU 800 MHz ARM Cortex A8 based Processor
Memory 512 MB Flash + 512 MB DDR3 RAM
LED Yes
Buzzer Yes
Buzzer Yes
Operating Temperature 0°C to +50°C (32°F to 122°F)
Humidity 5% to 95% RH Non-Condensing
Tamper Detection Yes
Power 12V DC @ 2A
Power to Door Lock 12V DC @ 0.5A (Power to Lock from Device)
System Integration API for Software Integration
Operational Modes Direct Door with COSEC CENTRA / COSEC VYOM Panel Door with COSEC PANEL200P
Wall Mount Yes
