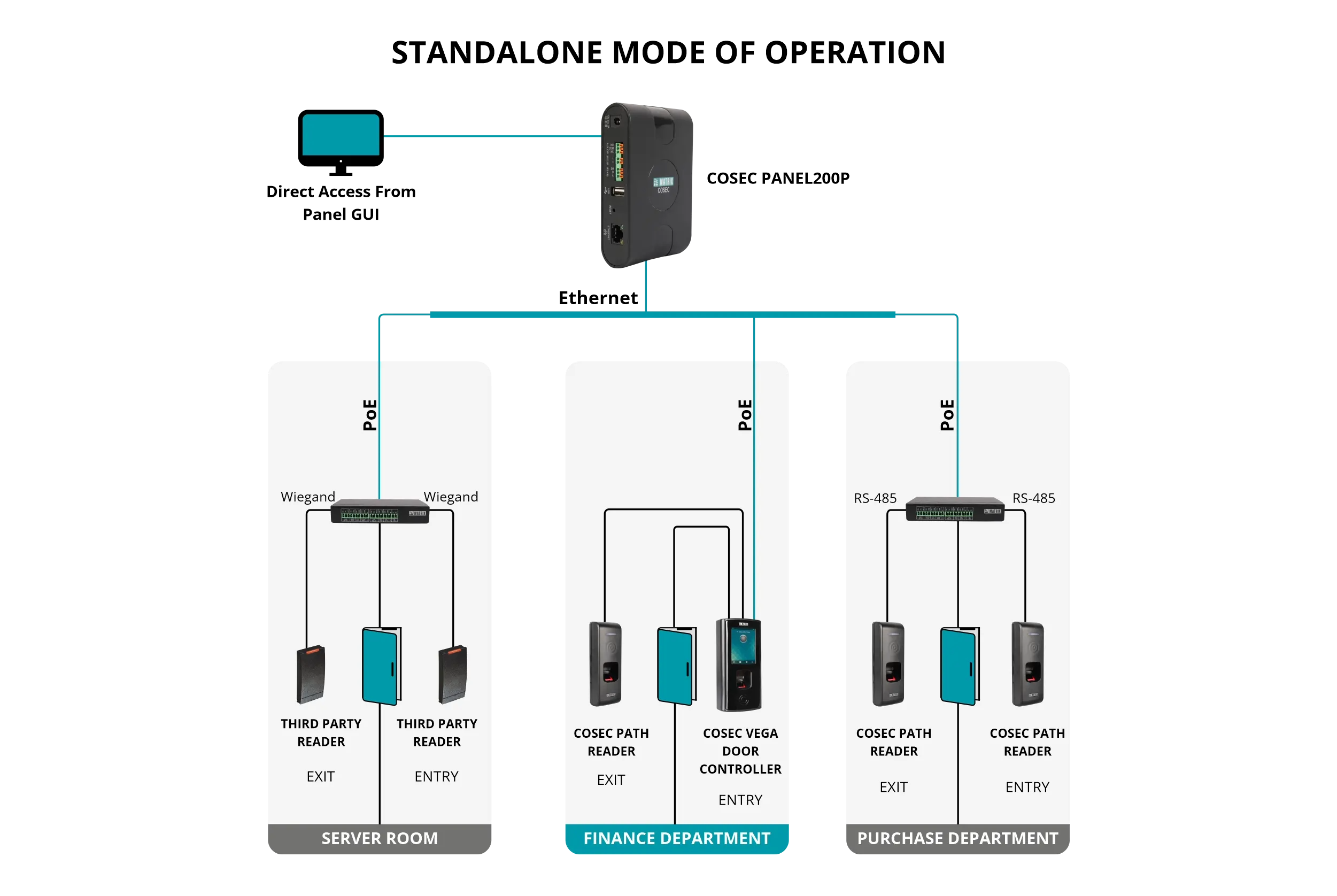

COSEC PANEL200P is a strong and scalable access controller made to manage many door controllers. It supports up to 255 devices for centralized monitoring and control. With features like real-time event alerts and data encryption, it ensures high security. COSEC PANEL200P is perfect for large businesses, factories, healthcare centers, and schools needing centralized access management.
With its comprehensive and versatile access control applications, COSEC PANEL200P – Access Control Panel is an intelligent site controller that provides a complete security layer for organizations. Depending on its two architectures, it can be used independently without server needs or as a bridge between controllers and COSEC. This device brings in 25+ advanced access control features, including Man Trap, Dead-Man Zone, Access Route, Who’s In, Duress Detection, and many more.


Man Trap, Dead Man Zone, Anti-Pass Back
2-Person Rule, First-In User, Guard Tour
Elevator Access Control, Access Route, and Many More

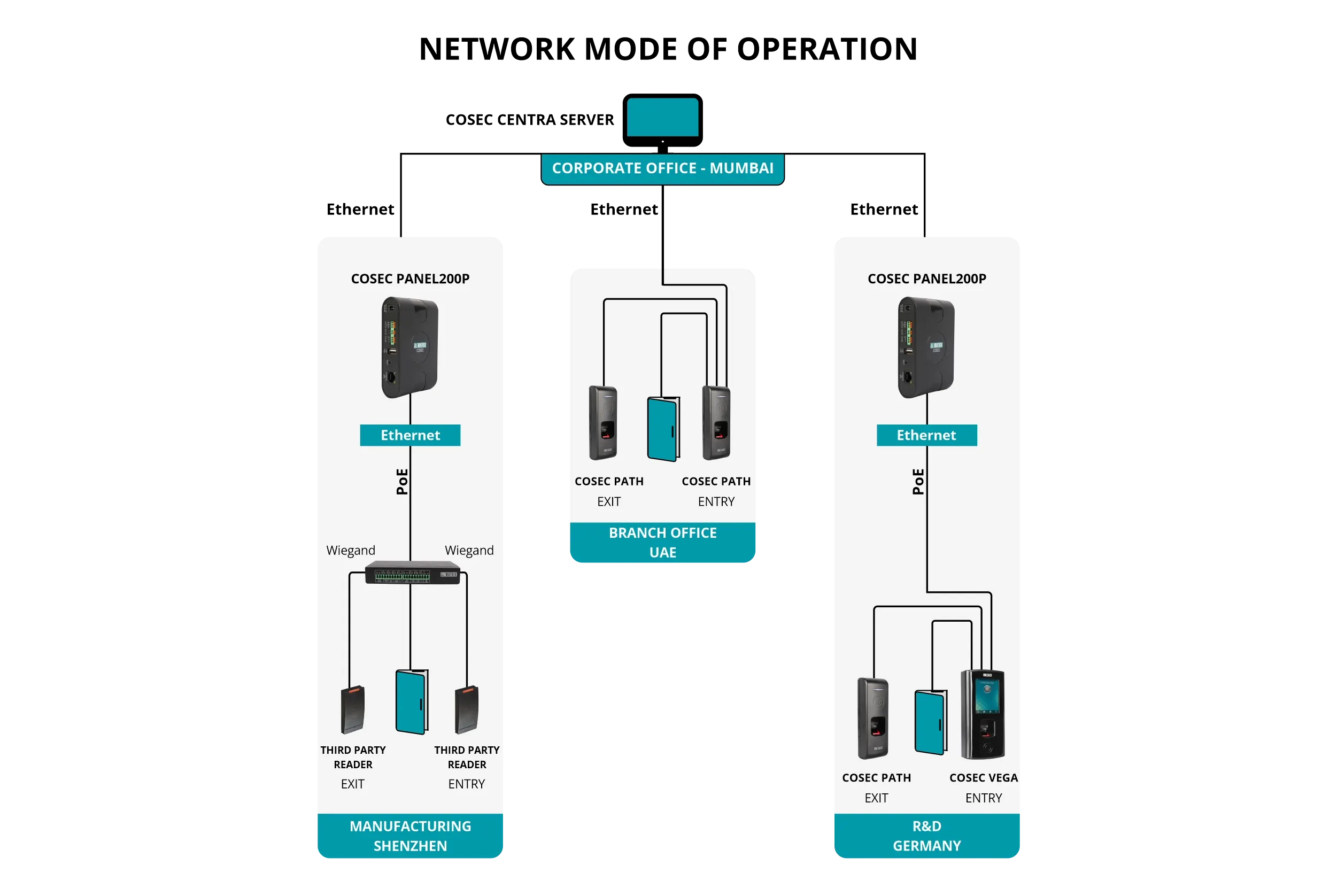

Gain Full-fledged Access Control for Standalone Operations as well as Multi-Locations

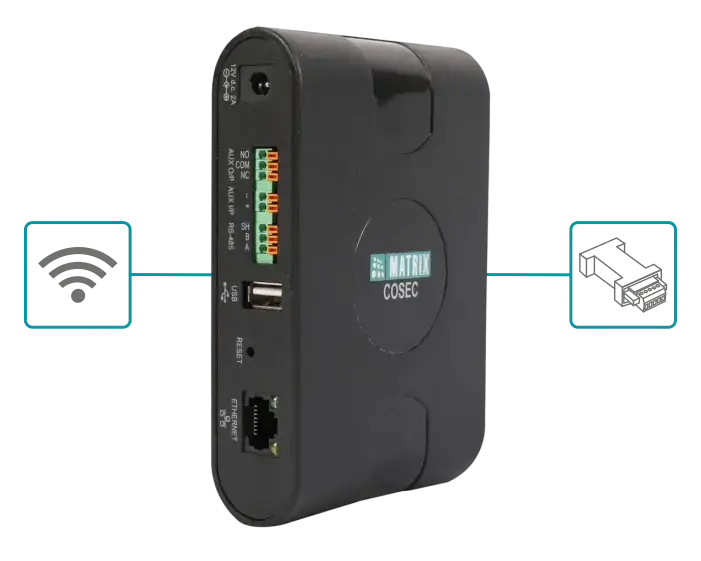

Built-in Bluetooth, Wi-Fi, USB, Ethernet, RS-485
Use Existing IT Infrastructures to Meet Future Needs

Controls up to 255 Doors

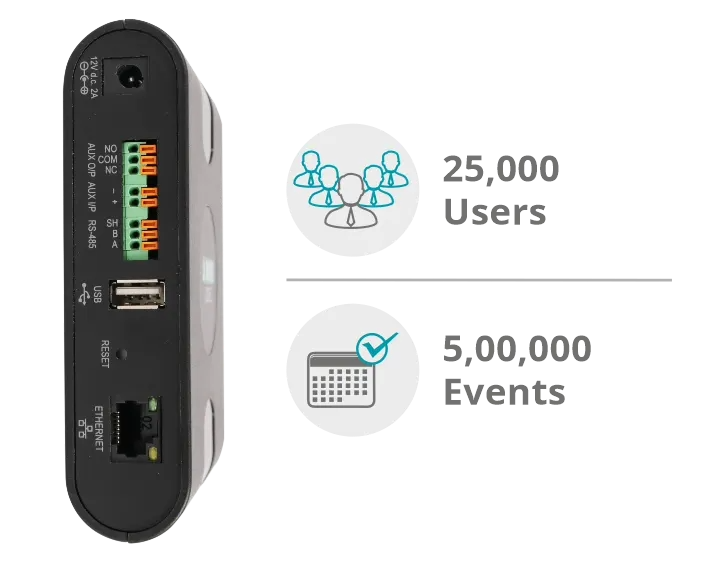

Stores up to 25,000 User Profiles
Event Log Capacity of 5,00,000

COSEC PANEL200P Access Controller secures data transmission with SSL encryption, providing a highly reliable solution that is snoop-proof and hack-proof
Eliminate the need for long cables between the control panel, reader, and lock, reducing costs effectively with the innovative IP to Door technology
Simplify installation and management with built-in web software and plug-n-play capability with no need for additional servers
Allow seamless connection of fire alarm, as well as motion sensors and relay devices via aux ports, eliminating the need for external integration hardware
Access controller features an innovative, compact design that seamlessly integrates above the door on a false ceiling, ensuring aesthetic appeal and a neat installation
Enable seamless communication with third-party software, allowing customers better control
| Access Control | |
|---|---|
| Max. Users | 25,000 |
| Event Buffer | 5,00,000 |
| Wi-Fi | Inbuilt Wi-Fi Module (IEEE 802.11 b/g/n) |
| Bluetooth® | YES |
| Ethernet | YES (10/100 Mbps) |
| RS-485 | YES |
| Aux-In | YES (4 states – short, open, activated & non-activated) |
| Aux-Out | Form C and SPDT Relay |
| CPU | Cortex A8 800 MHz |
| Memory | 256 MB Flash memory + 256 MB (DDR3 SDRAM @ 800MHz) RAM memory |
| LED | Tricolor LED (Power, Status & Alarm) |
| Buzzer | YES (12V) |
| Operating Temperature | -10°C to +55°C (14°F to 131°F) |
| Humidity | 5% to 95 % RH Non-Condensing |
| Tamper Detection | YES |
| Power | External Power Adapter 12 VDC @ 2 A |
| System Integration | API for Software integration |
| Operational Modes | 1) Network Architecture – With COSEC CENTRA/VYOM 2) Standalone Architecture |
| USB | One USB Port (For data transfer and 2G-3G-4G /WiFi Dongle) |
| RTC | YES |
| Maximum Door Controllers | 255 |
| Door controller on RS-485 | 32 |
