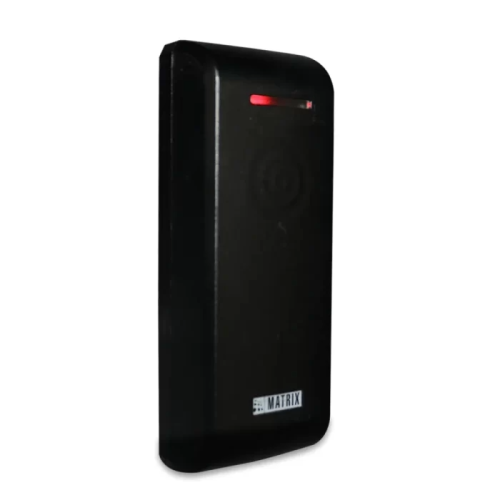

COSEC PATH DCCE
| Access Control | |
|---|---|
| Credential Support | Bluetooth® (BLE) and RFID Card |
| Ingress Protection | IP65 |
| Card | EM Proximity Card |
| Max. Users | 50,000 |
| Event Buffer | 500,000 |
| Wi-Fi | Yes |
| Bluetooth® | Yes |
| Ethernet | Yes (10/100 Mbps) |
| PoE | Yes (IEEE 802.3 af) |
| RS-232 | Yes |
| RS-485 | Yes |
| Wiegand | Yes (Selectable IN/OUT) IN: 26 Bit format OUT: Configurable |
| Exit Switch Port | Yes |
| Door Status Sense | Yes(2State) |
| Door Lock Relay | Yes |
| Door Lock Power | 12V DC @ 0.5A (Power to External Lock from Device) 30V DC @ 1A (Power to Lock from External power source) |
| Reader Interface Types | RS-232 and Wiegand |
| CPU | 800 MHz ARM Cortex A8 based Processor |
| Memory | 512 MB Flash + 512 MB DDR3 RAM |
| LED | Yes |
| Buzzer | Yes |
| Buzzer | Yes |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |
| Humidity | 5% to 95% RH Non-Condensing |
| Tamper Detection | Yes |
| Power | 12V DC @ 2A |
| Power to Door Lock | 12V DC @ 0.5A (Power to Lock from Device) |
| System Integration | API for Software Integration |
| Operational Modes | Direct Door with COSEC CENTRA / COSEC VYOM Panel Door with COSEC PANEL200P |
| Wall Mount | Yes |
