Name: COSEC VEGA CAI
Brand: Matrix
SKU: VEGA CAI
Availability: InStock

01000502545
This email address is being protected from spambots. You need JavaScript enabled to view it.

Brand: Matrix

Product Code: VEGA CAI

Availability: 10

Weight: 0.54kg

Dimensions: 3.80cm x 9.10cm x 18.60cm

COSEC VEGA CAI HiD iClass Card Reader

Price: 0.00EGP

Qty: - +

COSEC VEGA CAI, HiD iClass Card Based Touch Screen Door Controller from VEGA series, is specifically built for demanding enterprise to meet the functional needs of an organization’s employee time tracking system along with access control applications. The device offers unique advantages in terms of connectivity, technology, usage environment and ease of use. IP65, PoE, touchscreen and wireless connectivity offer foolproof Access Control and Time-Attendance solutions for organizations. With HiD iClass Card module, COSEC VEGA CAI gives the best for organizations.

USPs

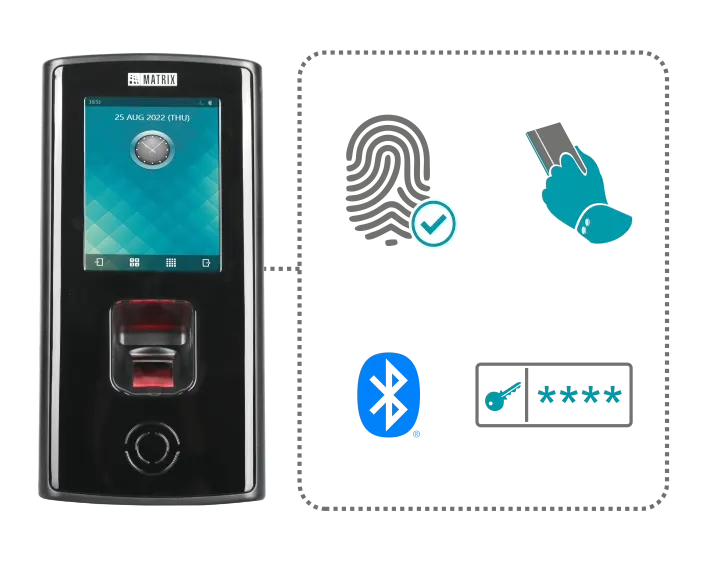

Multiple User Credentials

Door Access Control System Supports Credentials

Biometric: Finger

PIN and RFID Cards

Mobile through BLE

Dual Verification for High-Security Applications

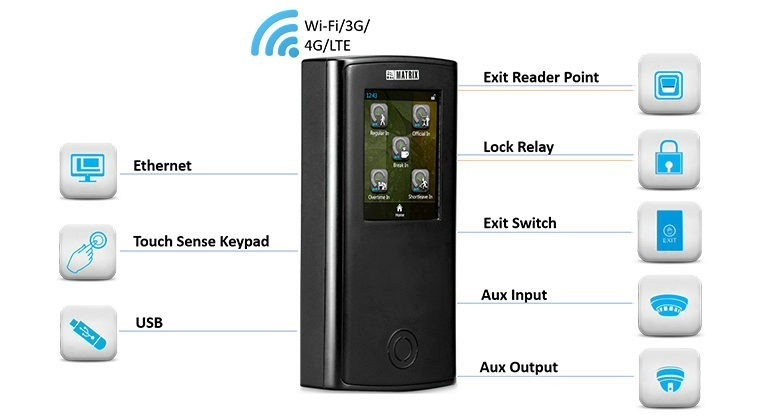

Multiple Connectivity Options

Matrix Door Access Control System Supports Multiple Connectivity

Built-in Bluetooth, Wi-Fi, PoE, Ethernet, GSM/VoLTE Options

Use Existing IT Infrastructures to Meet Future Requirements

Low IT Infrastructure Cost and Future Proof

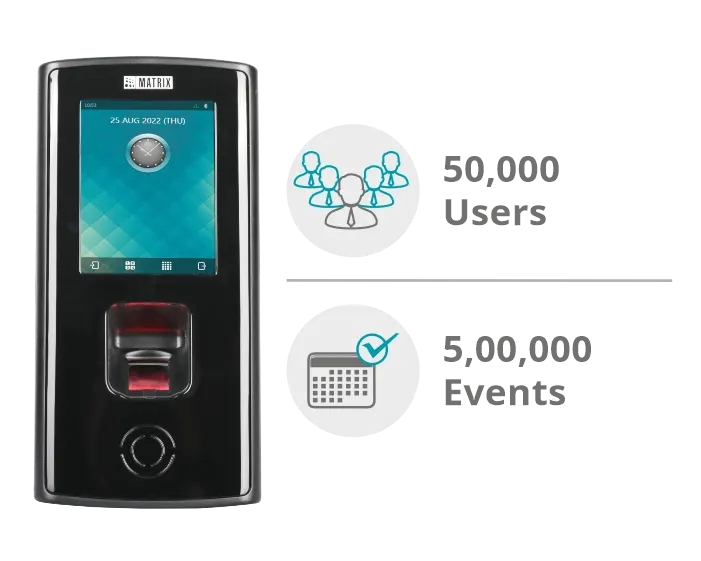

Higher User and Template Capacity

Door Access Control System Stores up to 50,000 User Profiles

Fingerprint Template Capacity up to 9,600 in 1:N Mode

Fingerprint Template Capacity up to 1,00,000 in 1:1 Mode

Event Log Capacity of 5,00,000

Features

Secured Communication

Secure data transmission with SSL encryption, providing a highly reliable solution that is snoop-proof and hack-proof

Auxiliary Devices Interface

Door Access Control System allows seamless connection of fire alarm, as well as motion sensors and relay devices via aux ports, eliminating the need for external integration hardware

Tamper Detection

Door Access Control System provides better security with tamper detection, instantly alerting to any vandalism acts, ensuring enhanced protection for devices

Pluggable Card Reader Module

Enable easy customization, as card modules can be changed according to the user's needs, reducing downtime by seamlessly plugging into existing systems

Weather Resistance with IP65

Matrix Door Access Control System offers a higher degree of protection with an IP65 rating, providing reliable ingress protection against dust and water

SD Card Support

Allows for storage, in case of network disruption, and easy transfer of data

Applications

Time and Attendance

Visitor Management

Cafeteria Management

Contract Worker Management

Job Processing and Costing

Access Control
Credential Support	Bluetooth® (BLE), RFID Card, PIN
Ingress Protection	IP65
Card	HID iClass Card Support (Read/Write), HID Prox, EM Prox, Desfire EV1 & EV2 (CSN Read) and Mifare Classic (CSN Read), NFC Tag
Max. Users	50,000
Event Buffer	500,000
Wi-Fi	Yes
Bluetooth®	Yes
Ethernet	Yes (10/100 Mbps)
PoE	Yes (IEEE 802.11 b/g/n)
RS-232	Yes
Wiegand	Yes (Selectable IN/OUT) IN: 26 Bit format OUT: Configurable
Exit Switch Port	Yes
Door Status Sense	Programmable NO, NC, Supervised
Door Lock Relay	30V DC @ 1A, Form C, DPDT Relay
Door Lock Power	12V DC @ 0.5A (Power to external Lock from Device) 30V DC @2 A (Power to lock from External power source)
Aux-In	Yes
Aux-Out	Yes
Reader Interface Types	RS-232 and Wiegand
CPU	800 MHz ARM Cortex A8 based Processor
Memory	256 MB Flash + 512 MB DDR3 RAM
Buzzer	Yes
Operating Temperature	0°C to +50°C (32°F to 122°F)
Tamper Detection	Yes
Power	12V DC @ 2A
Power to Door Lock	12V DC @ 0.5A (Power to Lock from Device)
System Integration	API for Software Integration
Operational Modes	Direct Door with COSEC CENTRA / COSEC VYOM Panel Door with COSEC PANEL200P
Operational Modes	5% to 95% RH Non-Condensing
Wall Mount	Yes
Power Adapter	12VDC @ 2A (CE, FCC, UL, BIS)
Battery Backup	Yes
Display	3.5″ TFT Display with Capacitive Touch Panel
Display Resolution	320 x 240 Pixel
USB	1 USB Port (Data Transfer and 3G/4G/LTE Dongle)
