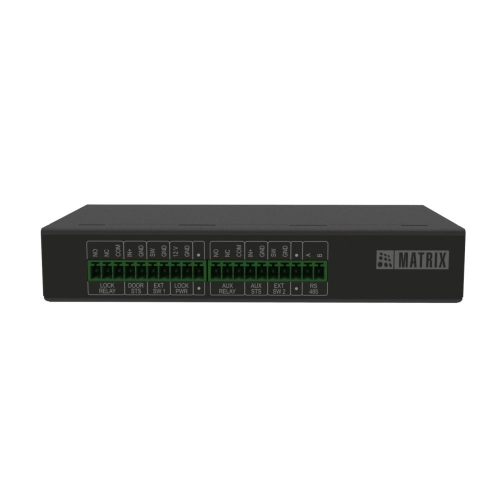

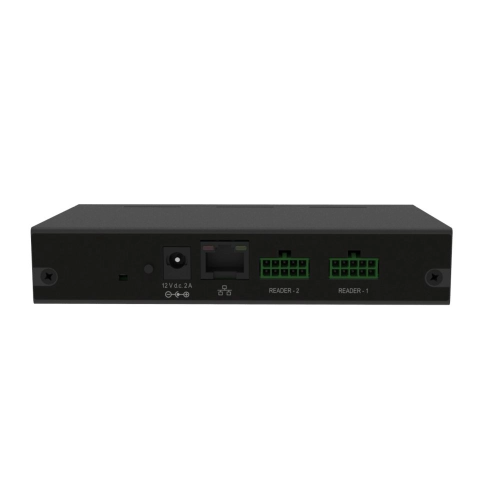

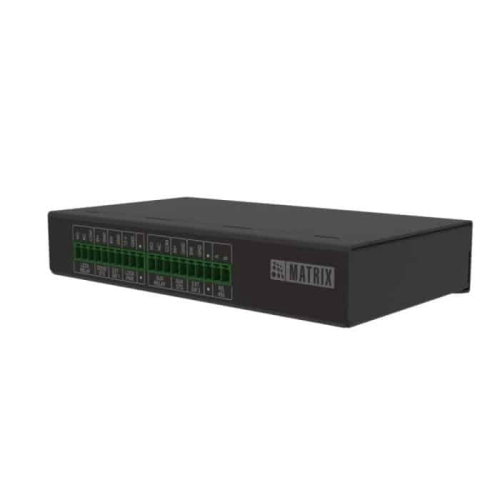

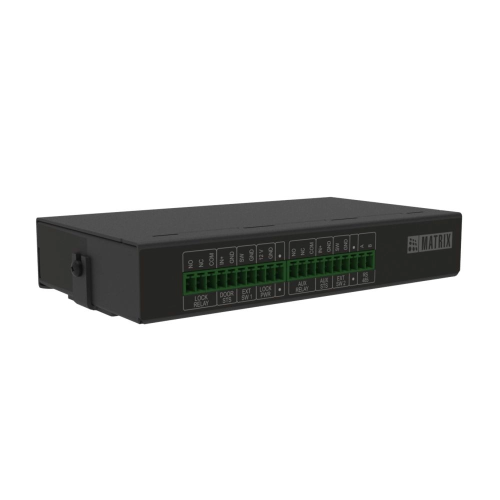

Two Door Access Controller - COSEC ARC DC200P

Price: 0.00EGP

Qty: - +

Overview

COSEC ARC DC200P is a compact and IP65-rated two door access controller designed for seamless and secure access control. It supports multiple credentials, including RFID and PIN, offering flexibility and ease of use. Its Power over Ethernet (PoE) support simplifies installation and reduces cabling requirements. Ideal for offices, banks, data centers, and industrial facilities, COSEC ARC DC200P is a reliable choice for modern door access control needs.

Matrix presents COSEC ARC DC200P – Next generation Two-way Door Controller. It is developed on the concept of ‘IP to door’. It proactively utilizes Wi-Fi or PoE+ infrastructure to interact with Door controllers on each door with minimum wiring requirements. This helps in improving solution reliability and at the same time, gives a drastic reduction in installation cost.
Also, With its SSL capabilities, COSEC ARC DC200P secures communication between the server and the door controller, helping organizations with simple access or critical security.

USPs

Two Door Access Controller

Control Two Doors from One Door Controller

Reduce Additional Hardware Device Cost

Single Door, Two Readers Deployment

Two Doors, Two Readers Deployment using COSEC PANEL200P

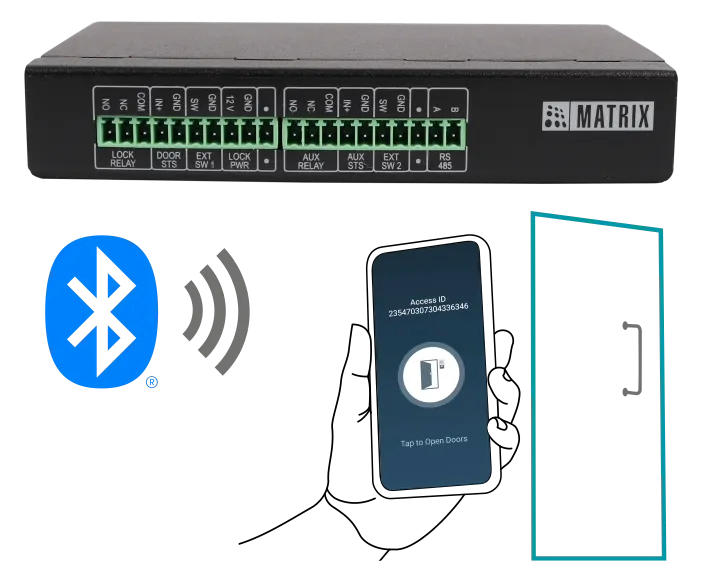

Mobile-based Door Access Control

Open Door using User’s Mobile

Future Proof and Convenient

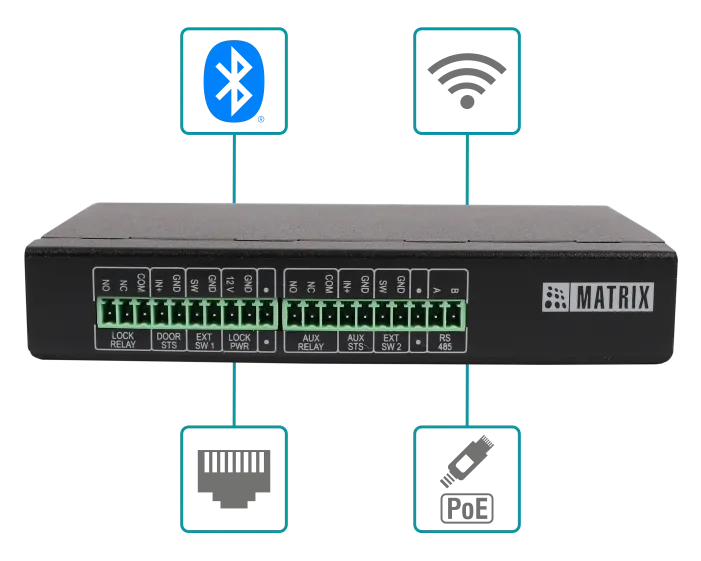

Convenient Communication Options

Bluetooth, Wi-Fi, PoE+, Ethernet

Use Existing IT Infrastructures

Meet Future IT Infrastructure Requirements

Features

Secured Communication

Two Door Access Controller - COSEC ARC DC200P secures data transmission with SSL encryption, providing a highly reliable solution that is snoop-proof and hack-proof

IP to Door

Eliminate the need for long cables between the control panel, reader, and lock, reducing costs effectively with the innovative IP to Door technology

Power to Lock and Readers

Enable direct power supply to door locks and readers with PoE+, eliminating the need for an adapter and reducing costs

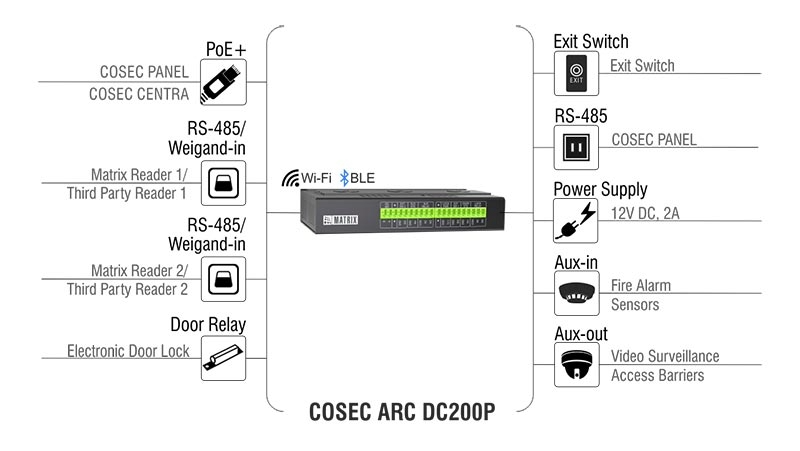

Auxiliary Devices Interface

Two Door Access Controller - COSEC ARC DC200P allows seamless connection of fire alarm, as well as motion sensors and relay devices via aux ports, eliminating the need for external integration hardware

Compact Design

Features an innovative, compact design that seamlessly integrates above the door on a false ceiling, ensuring aesthetic appeal and a neat installation

Third-Party Reader Support

Promote interoperability and allow utilization of existing third-party readers through Wiegand/OSDP V2.2 interface

Applications

Access Control

Access Control
Max. Users	50,000
Wi-Fi	YES (IEEE 802.11 b/g/n)
Bluetooth®	YES (Configurable range: 1m – 8m)
Ethernet	YES (10/100 Mbps)
PoE	YES (IEEE 802.3 af/at)(PoE/PoE+) PoE: Up to 15.4 W PoE+: Up to 25.5 W
RS-485	YES
Wiegand	YES (Selectable IN/OUT) IN – 26 Bit format OUT – Configurable
Exit Switch Port	YES (2 Exit switch for connecting individually with Reader 1 & Reader 2)
Door Status Sense	YES (4 State – Programmable NO, NC and Supervised)
Door Lock Relay	YES (30V DC @2A, Dry Contacts NO/NC/COM)
Aux-In	YES (4-State)
Aux-Out	YES (Max. 30V DC @ 2A)
CPU	Cortex A8 800 MHz
Memory	256 MB Flash Memory + 256 MB (DDR3 SDRAM @800MHz) RAM memory
LED	1 Tri color LED
Operating Temperature	-10°C to +50°C (14°F to 122°F)
Humidity	5% to 95 % RH Non-Condensing
Power	Adaptor = 12V DC @ 2 A PoE+ = 12V DC @1.8 A
Power to Door Lock	With PoE: 12V DC@ 0.5A for 1 Lock With PoE+ : 12V DC @ 1A For 1 lock or 12V DC @ 0.5A for 2 Lock ( 0.5A EACH LOCK) Adapter : 12V DC@ 0.5A at 1 Lock
System Integration	API for Software integration
Operational Modes	Direct/Panel door with COSEC CENTRA/ VYOM Panel door with Standalone COSEC PANEL200
