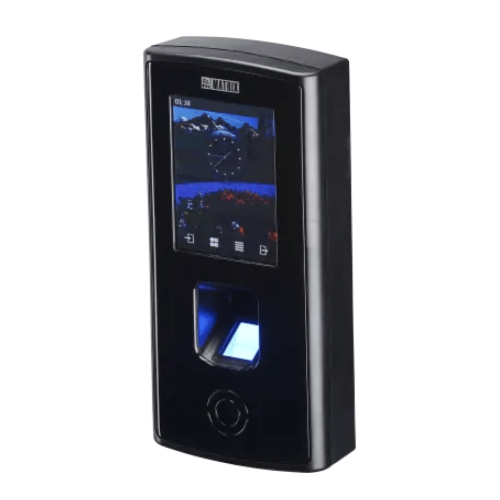

COSEC VEGA FAXQ , Finger and MiFare Classic Card Based Biometric Door Controller from VEGA series, is specifically built for demanding enterprise to meet the functional needs of an organization’s employee time tracking system along with access control applications. The device offers unique advantages in terms of connectivity, technology, usage environment and ease of use. IP65, PoE, touchscreen and wireless connectivity offer foolproof Access Control and Time-Attendance solutions for organizations. With MiFare Classic Card module alongside biometrics, COSEC VEGA FAXQ gives the best for organizations along with biometric credentials.

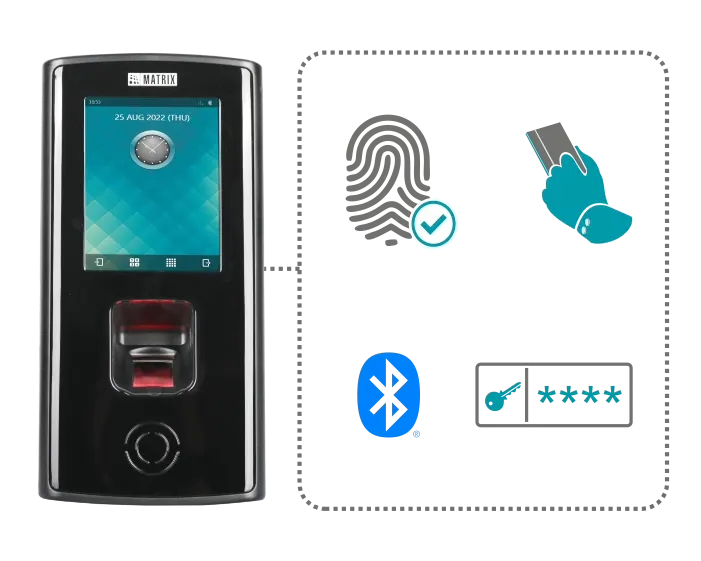

Door Access Control System Supports Credentials
Biometric: Finger
PIN and RFID Cards
Mobile through BLE
Dual Verification for High-Security Applications

Matrix Door Access Control System Supports Multiple Connectivity
Built-in Bluetooth, Wi-Fi, PoE, Ethernet, GSM/VoLTE Options
Use Existing IT Infrastructures to Meet Future Requirements
Low IT Infrastructure Cost and Future Proof

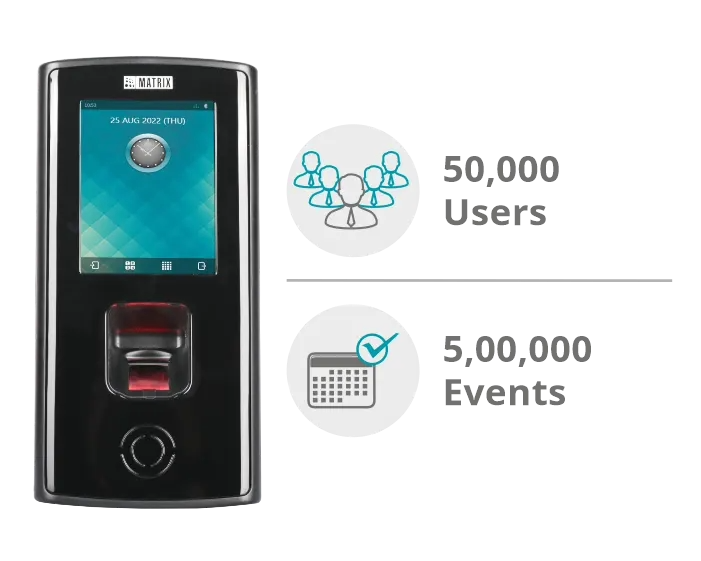

Door Access Control System Stores up to 50,000 User Profiles
Fingerprint Template Capacity up to 9,600 in 1:N Mode
Fingerprint Template Capacity up to 1,00,000 in 1:1 Mode
Event Log Capacity of 5,00,000

Secure data transmission with SSL encryption, providing a highly reliable solution that is snoop-proof and hack-proof
Door Access Control System allows seamless connection of fire alarm, as well as motion sensors and relay devices via aux ports, eliminating the need for external integration hardware
Door Access Control System provides better security with tamper detection, instantly alerting to any vandalism acts, ensuring enhanced protection for devices
Enable easy customization, as card modules can be changed according to the user's needs, reducing downtime by seamlessly plugging into existing systems
Matrix Door Access Control System offers a higher degree of protection with an IP65 rating, providing reliable ingress protection against dust and water
Allows for storage, in case of network disruption, and easy transfer of data
| Access Control | |
|---|---|
| Credential Support | Fingerprint, RFID Card and PIN |
| Max. Users | 50,000 |
| Event Buffer | 500,000 |
| Wi-Fi | Yes (802.11 b/g/n) |
| Ethernet | Yes (10/100 Mbps on Ethernet) |
| PoE | Yes (IEEE 802.3 af) |
| Exit Switch Port | Yes |
| Door Status Sense | Programmable NO, NC, Supervised |
| Door Lock Relay | Form C, SPDT Relay (Max 2A@30 VDC) |
| Door Lock Power | Internal 12VDC @ 0.5A or External |
| Aux-In | Programmable NO, NC, Supervised |
| Aux-Out | Form C, SPDT Relay (Max 2A@30 VDC) |
| Reader Interface Types | RS 232, and Wiegand IN/OUT |
| CPU | 800 MHz ARM Cortex A8 based Processor |
| Memory | 256 MB Flash + 512 MB DDR3 RAM |
| Buzzer | Yes |
| Operating Temperature | 0°C to + 50°C (32°F to 122°F) |
| Humidity | 5% to 85% RH Non-Condensing |
| Tamper Detection | Yes |
| Power | 12 VDC @ 2A |
| System Integration | Software API for Software Integration |
| Operational Modes | Direct Door with COSEC CENTRA Server Panel Door with COSEC PANEL LITE V2 |
| Battery Backup | No Internal Battery Backup, External Through PSBB |
| Display | 3.5" TFT Display with Capacitive Touch Panel |
| USB | 2 USB Ports (1 for Data Transfer and 1 for 2G-3G Dongle) |
