Name: POE-GSH420-65
Brand: Contra Technology
SKU: POE-GSH420-65
Price: 2380.00 EGP
Availability: InStock

01000502545
عنوان البريد الإلكتروني هذا محمي من روبوتات السبام. يجب عليك تفعيل الجافاسكربت لرؤيته.

الماركة ::

كود المنتج :: POE-GSH420-65

حالة المخزون :: 10

الوزن: 0.91kg

الأبعاد: 20.00cm x 11.80cm x 4.40cm

Tags: AirLive POE-GSH420-65

مرفقات:
- POE-GSH420-65.pdf

السعر: 2,380.00EGP

الكمية: - +

Overview

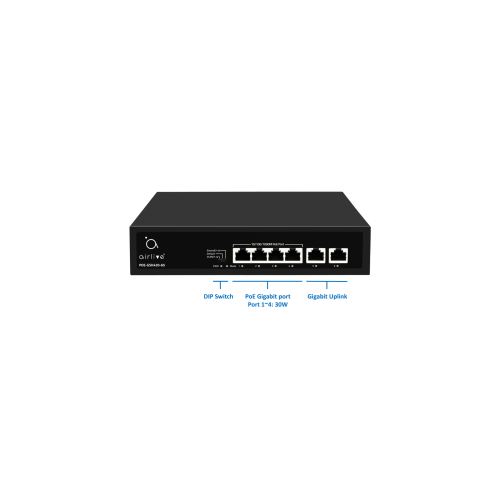

The AirLive POE-GSH420-65 Gigabit switch is compliant with 802.3af(15W)/802.3at(30W). It supports 4 Gigabit PoE+ ports and 2 Gigabit RJ-45 uplink ports. The total PoE power is 60W. The AirLive POE-GSH420-65 switch is a plug and play unmanaged PoE switch with VLAN and 250meter cabling extension, which can be easily set up via its DIP switch. The two Gigabit Uplink ports help with connecting the switch to a larger network making the it the most cost-efficient client switch for various applications at Home or Office. Connect several PoE devices to the switch, Access Points or normal IP cameras can connect to any of the PoE ports on the switch and be powered on up to max 30W (at).

802.3af/at PoE Gigabit Switch, with 2x RJ-45 Uplink

Features

All 6-port, each port delivers Gigabit high speed.
4 x PoE port 10/100/1000 (up to 30W).
Extend the network further with 2 x 10/100/1000Mbps RJ-45 Uplink ports.
PoE power, supports 802.3af/802.3at PoE+.

Featres

Internal Power 65W, MAx PoE budget 60W.
VLAN Mode: gives the switch extra security as Port isolation Setting by hardware DIP switch.
Extended Mode: transmission of up to 250M in Extend Mode Setting by hardware DIP switch

VLAN Mode

VLAN mode: This additional feature gives the switch extra security for the users connected to it. The VLAN mode works as Port isolation, meaning that when it’s enabled the users connected to the LAN ports cannot communicate with each other but only communicate with the Uplink ports (port 5/6). This way there is an extra layer of security and data will not be shared between the users. This can be used in a small office to separated guests from the company network or in a home to separate tenants.

Extend Mode

Extend mode: The POE-GSH420-65 switch can be set in Extend mode to reach a distance of up to 250m, this can be very useful in locations where it hard to get power to turn on your PD device. The Extend mode makes this easier. The Extend mode is only for Port 3 and 4 on the switch and when enabled the transmission rate will be 10Mbps.

AirLive
Device Interface	4 x 30W PoE 10/100/1000 RJ45 2 x 10/100/1000 RJ-45 Uplink
Standards	IEEE802.3 Ethernet IEEE802.3u 100Base-TX / 100Base-FX IEEE802.3ab Gigabit 1000Base-T IEEE802.3af/at PoE IEEE802.3x
PoE Port	4
PoE Power Output / PoE Port	max. 30W (port 1~4)
PoE Power Output / PoE switch	60W
Switching architecture: Store and Forward	Switch Capacity: Back-plan up to 12Gbps Forwarding Rate: 8.928Mpps MAC Address: 2K Packet Buffer: 1Mbit Transfer mode: Store and forward MTBF:100000 hour
