Name: POE-GSH2422-300
Brand: Contra Technology
SKU: POE-GSH2422-300
Price: 7400.00 EGP
Availability: InStock

01000502545
عنوان البريد الإلكتروني هذا محمي من روبوتات السبام. يجب عليك تفعيل الجافاسكربت لرؤيته.

الماركة ::

كود المنتج :: POE-GSH2422-300

حالة المخزون :: 10

الوزن: 1.97kg

الأبعاد: 32.00cm x 20.70cm x 4.40cm

مرفقات:
- POE-GSH2422-300.pdf

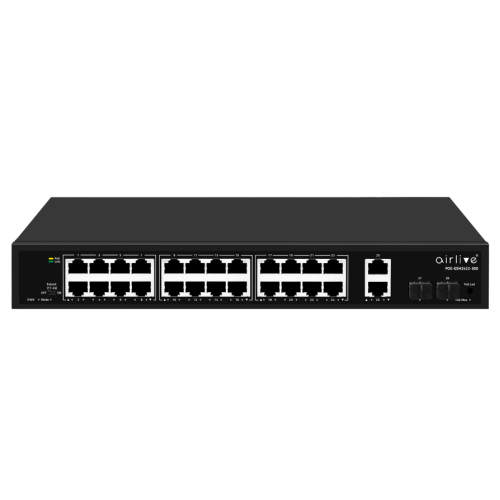

28-port Gigabit PoE+ Switch

السعر: 7,400.00EGP

الكمية: - +

Overview

The AirLive POE-GSH2422-300 Gigabit switch is compliant with 802.3af(15W)/802.3at(30W) It supports 24 Gigabit PoE ports and 4 uplink ports including 2x 1G RJ45 and 2x 1G SPF Fiber. Total of PoE power budget is 285W. The AirLive POE-GSH2422-300 switch is a plug and play unmanaged PoE switch with PoE Priority and 250meter cabling extension, which can be easily set up via its DIP switch. The four Gigabit Uplink ports (2x SFP and 2x RJ-45) help with connecting the switch to a larger network making the it the most cost-efficient client switch for various applications at Home or Office. Connect several PoE devices to the switch, Access Points or normal IP cameras can connect to any of the PoE ports on the switch and be powered on up to max 30W (at).

802.3af/at PoE Gigabit Switch, with 2x SFP and 2x RJ45 Uplink

Features

All 28-port, each port delivers Gigabit high speed.
24 x PoE port up to 30W 10/100/1000Mbps RJ-45
2 x 1000T RJ-45 Uplink port.
2x 1Gbps SFP Uplink port.
PoE Priority
Extend the network further with 2 SFP slots that accept fiber transceivers and go beyond the limits of Ethernet.

Features

PoE power, supports 802.3af/802.3at PoE+.
Internal Power, 300W, Max PoE budget 285W.
Extended Mode: transmission of up to 250M in Extend Mode Setting by hardware DIP switch.
PoE Watchdog in Extended Mode.
Surge Protection; ESD Protection.

Fiber backbone for Long Distance and Interconnect between floors

Extend the network further with SFP slot. Use the POE-GSH2422-300 fiber port to connect different floors together in a large building or to the main office over a longer distance. Depending on the module used it can reach up to 20KM in distance with 1250Mbps data transmission rate.

PoE and Extend Mode

Connect several PoE devices to the switch, Access Points or normal IP cameras can connect to any of the PoE ports on the switch and be powered on up to max 30W (at). The POE-GSH2422-300 switch can be set in Extend mode to reach a distance of up to 250m, this can be very useful in locations where it hard to get power to turn on your PD device. The Extend mode makes this easier. The Extend mode is only for Port 17 and 24 on the switch and when enabled the transmission rate will be 10Mbps. PoE Watchdog is also enabled when Extend mode is on.

PoE and Extend Mode

AirLive
Device Interface	24 x 30W PoE 10/100/1000 RJ45 2 x 1000Mbps RJ45 2 x 1.25Gbps SFP
Standards	IEEE802.3u 100Base-TX / 100Base-FX IEEE802.3ab Gigabit 1000Base-T IEEE802.3z Gigabit SX/LX (optical fiber) IEEE802.3af/at PoE IEEE802.3x
PoE Port	24
PoE Power Output / PoE Port	max. 30W (port 1~24)
Power Input	52V/5.76A
Switching architecture: Store and Forward	Switch Capacity: Back-plan up to 56Gbps Forwarding Rate; 41.644Mpps MAC Address: 8K Packet Buffer: 3Mbit Jumbo Frame: 15Kbytes Transfer mode: Store and forward MTBF:100000 hour
