Layer 3 400W Managed Gigabit PoE+ Switch with 10G uplink

Price: 0.00EGP

Qty: - +

AirLive L3POE-XGS4804 High Power over Ethernet (HiPoE) Switch Series pushes the frontier with leading IEEE802.3bt standard, delivering 90W power output per port(Port#1~8). The HiPoE switch guarantees the best security, efficiency, stability and energy-saving experiences.
The HiPoE switch is highly adaptive to a breadth of scenarios, eliminating rigid ties to expensive deployment costs, slow implementation cycle, unstable power supply, management complexity, and unsatisfactory security problems that alternative solutions have been struggling to solve. The switch fully addresses high PoE access needs for low power scenario as well as high power Digital Signage application.

Stable and Reliable Power Supply
High-power (90 W) and long-distance (100 m) power supply is provided. Compared with the conventional centralized power supply mode:

The HiPoE technology complies with international standards; adjusts line loss and lowers voltage intelligently, reducing errors caused by manual adjustment; and provides independent power supply over single ports, achieving faulty domain isolation.

AirLive L3POE-XGS4804, supporting 48 GE SFP/4 10GE SFP+ ports, is one of the L3-XGF series switches. This series delivers high-performance, super-reliable 10 GE switches with comprehensive Quality of Service and security capabilities upload. The L3POE-XGS4804 is ideal for use as access switches in large-scale data centers and core switches in campus networks.

Rich L3 Features
The AirLive L3POE-XGS4804 Series is a next-generation multiservice switch collection that offers remarkable performance and enhanced security. The switches offer high CPU capacity, improved hardware processing power and easier user operation. The L3POE-XGS4804 series supports flexible gigabit access and scalability of high-density 10G ports. All models provide fixed 10G fiber ports, With high switching capacity, the L3POE-XGS4804 support wire-speed L2/L3 forwarding and high routing performance for IPv4 and IPv6 protocols. With end-to-end service delivery and a wide range of security configurations available, the L3POE-XGS4804 series meets the high-speed, security, and intelligence needs of enterprise networks.

Layer 3 switch is a specialized hardware device used in network routing. It supports routing protocols, inspects incoming packets, make dynamic routing decisions based on the source and destination address insides. Besides, Layer 3 switches are much lower network latency since packets don't have to take additional steps through a router. It is widely used in Data centers and Universities, Factory Industrial Park, Enterprises where there is a large setup of computer networking. Owning to its features like static and dynamic routing and its fast switching speed than a router, it is used in LAN connectivity of several VLAN and LAN networks.
The L3POE-XGS4804 series offers high performance hardware including 802.3bt (90W port 1~8) PoE power, IP routing. Static route, OSPF, and RIP provide dynamic routing by exchanging routing information with other Layer 3 switches and routers. With the L3POE-XGS4804 series, customers could easily achieve a Policy-based Route (PBR), which is important when they need a Switch to switch application and short network heal time.

Features

Rich Layer 3 Features
Fully L2 features provide easier manageability, security and QoS
ITU-T G.8032 Ethernet Ring Protection Switching (ERPS)
SNMP, WEB, CLI, SSH2.0, Telnet
VLAN Division Voice
IPv4/IPv6 L3 static route
OSPF Routes dynamic routing
SFP+ 10Gbps Fiber Long Distance
Voice Vlan Support
PoE Port configuration and scheduling
802.3af/802.3at/802.3bt high power PoE standard
Supports PoE++ up to 90W (Port 1~8 90W per port),
400W High PoE power, ensure full power for connected device
Clear Statues display including traffic, CPU, POE consumption, per-port status
Web-UI for easy management; CLI and Command Script for advance setting; SNMP used for popular network tools management.

Major Specifications

48 x 30W including 8x 90W PoE 10/100/1000
4 x 10G SFP+
802.3bt/802.3at/802.3af compliant
Each port up to 30Watts, Port 1~8 up to 90W;PoE Power 400W
Rich Layer 3 Features
L3 DHCP Server/Relay
L3 DHCP Snooping
IPv4/IPv6 L3 static route
OSPF Routes dynamic routing
Surge Protection 6KV，ESD Protection 8KV
PoE management, PoE Watchdog
Authentication: 802.1x, AAA
DHCP Snooping prevents unauthorized router installed

Applications of Layer-3 Switches

Layer3 Switch is widely used in data centers and universities , factory enterprise. where there is a very big setup of computer networking. Owing to its features like static and dynamic routing and its fast switching speed than a router, it is used in LAN connectivity for interconnection of several VLAN and LAN networks.
L3POE-XGS4804 have the skills to offload the overloaded routers. This can be done by configuring a layer-3 switch, each with a main router in a wide area networking scenario so that the switch can manage all the local level VLAN routing.
The layer-3 switch in combination with a number of layer-2 switches supports more users to connect on the network without the need for implementation of an extra layer-3 switch and more bandwidth. Thus it is widely implemented in universities and small-scale industries. In case if the number of end users on a network platform increases, then without any enhancement of the network, it can be accommodated in the same running scenario easily.
A layer-3 switch is smart enough to handle and manage the routing and traffic controlling of locally connected servers and end devices utilizing its high bandwidth.

802.3BT High Power PoE

Airlive Power over Ethernet (PoE) products are suitable for commercial and industrial applications which provide highly reliable power and data transmission in compliance with the 802.3bt standard and the unique intelligent PoE watchdog control function can meet all the requirements of IP surveillance, IP communications, POS systems, PoE lighting and other applications.

AirLive L3POE-XGS4804 supports the high-power output PoE++ at 90W for ports 1~8. This higher output allows it to power more device then just an IP camera or Access point. The 90W PoE can be used to power on high power needed PoE Systems, Digital Signage or even PoE LED lighting and much more. Giving you much more flexibility on the usage, as you are no longer restricted to only 30W.

10G Performance and Scalability

With high switching capacity, the L3POE-XGS4804 support wire-speed L2/L3 forwarding and high routing performance for IPv4 and IPv6 protocols.
The 10 Gigabit Ethernet connectivity of L3POE-XGS4804 is accomplished via a hot-pluggable 10 Gigabit SFP+ transceiver which supports distance up to 300 meters over multimode fiber and 10 to 40km over single-mode fiber (The distance depends on the optical module chosen).

Strong L3 IGMP Snooping Multicast

L3 multicast protocols is compliant with IGMPv1/v2/v3, and supports abundant multicast features such as IGMP v2/v3 snooping and fast leave. With Multicast VLAN Register (MVR), multicast receiver/sender control and illegal multicast source detect functions; the L3POE-XGS4804 fiber series provides a great application experience for the customer.

L3 OSPF Routes Management

Open shortest path first (OSPF) is a link-state routing protocol that is used to find the best path between the source, which is generally used in the same routing domain. Here, routing domain refers to an autonomous system (as), which refers to a group of networks that exchange routing information through a unified routing policy or routing protocol. In this as, all OSPF routers maintain the same database describing the as structure, which stores the state information of the corresponding links in the routing domain. It is through this database that OSPF routers calculate their OSPF routing tables.

As a link state routing protocol, OSPF transmits link state multicast data LSA (link state advertisement) to all routers in a certain area, which is different from distance vector routing protocol. The router running distance vector routing protocol passes part or all of the routing tables to its neighboring routers.

L3 DHCP Snooping Support

Prevention against illegal Router(DHCP Server) attacks or sending DHCP information.

L3 VLAN IP Routing Interface Management

The L3POE-XGS4804 provides 3 layers of VLAN interface, which is used to communicate with network layer devices. VLAN interface is a network layer interface, which can be configured with IP address. Before creating VLAN interface, the corresponding VLAN should be created first. With the help of VLAN interface, switches can communicate with other network layer devices.

Layer 2 vs Layer 3 Switch

The layer 2 and Layer 3 differs mainly in the routing function. A Layer 2 switch works with MAC addresses only and does not care about IP address or any items of higher layers. Layer 3 switch, or multilayer switch, can do all the job of a layer 2 switch and additional static routing and dynamic routing as well. That means, a Layer 3 switch has both MAC address table and IP routing table, and handles intra-VLAN communication and packets routing between different VLANs. There is also layer 2+ (layer 3 Lite) switch that adds only static routing. Other than routing packets, layer 3 switches also include functions that require to understand the IP address information of data entering the switch, such as tagging VLAN traffic based on IP address instead of manually configuring a port. Layer 3 switches are increased in power and security as demanded.

Office Application 1

Advanced Layer 3 basic features are supported which are necessary for an access or core switch of SME.

Enterprise Application 2

The L3POE-XGS4804 Series Switches can be deployed as core switches in small and medium enterprises. The Airlive L3 Series Switches not only simplifies the network architecture, but also significantly improves the reliability and efficiency of the network system.

Campus/Hospital Application 3

As the aggregation layer switch of large campus network,L3POE-XGS4804 Series Switches offers high-performance bandwidth link with 10G aggregation to core and higher bandwidth for the access device to meet the growing demand of user traffic.

Hotel Application 4

As the aggregation layer switch of hotel network, L3POE-XGS4804 Series Switches offers high-performance bandwidth link with the high-speed, security, and intelligence needs of Hotel mix networks.

* Supports PoE++ up to 90W (Port 1~8 90W per port)
* Customized for large campus network: up to 32K MAC address
* Exceptional performance & scalability: up to 176Gbps switching bandwidth capacity
* Out-of-box with advanced Layer 3 IP routing, OSPF features
* Aggregation layer of a large network, core layer of medium-sized network, access of a server cluster, and full SFP Layer 3 access of buildings in large enterprise or campus networks.
* Strong security management mechanisms provide network security defense, high-security access control, and effective network access control.
* Superior management policies facilitate bandwidth management and ensure the performance of key applications such as voice/video conference, music and video streaming and Video on Demand (VoD).

Hardware
Model	AirLive L3POE-XGS4804-400

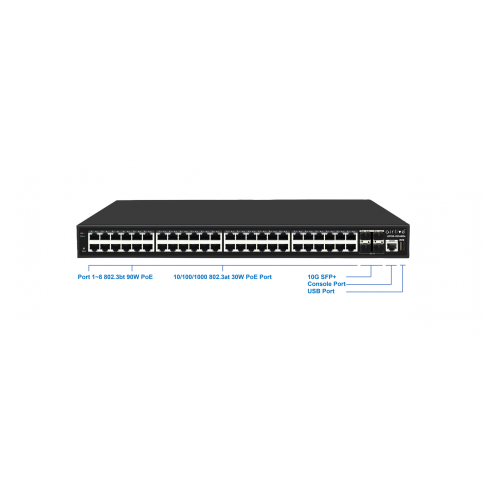

Device Interface	48 x 10/100/1000M PoE 30W Ports (Port 1~8 PoE 90W) 4 x 10G SFP+ Ports 1 x RJ45 Console Port 1 x USB Port
Standards	IEEE 802.3：Ethernet MAC Protocol IEEE 802.3i：10BASE-T Ethernet IEEE 802.3u：100BASE-TX Fast Ethernet IEEE 802.3ab：1000BASE-T Gigabit Ethernet IEEE 802.3z：1000BASE-X Gigabit Ethernet (optical fiber) IEEE 802.3ae：10G Ethernet (optical fiber) IEEE 802.3az：Energy Efficient Ethernet IEEE 802.3ad：Standard method for performing link aggregation IEEE 802.3x：Flow control IEEE 802.1ab： LLDP/LLDP-MED (Link Layer Discovery Protocol) IEEE 802.1p：LAN Layer QoS/CoS Protocol Traffic Prioritization(Multicast filtering function) IEEE 802.1q：VLAN Bridge Operation IEEE 802.1x：Client/Server Access Control and Authentication Protocol IEEE 802.1d：STP IEEE 802.1s：MSTP IEEE 802.1w：RSTP IEEE 802.3ah：OAM IEEE 802.3af（15.4W） IEEE 802.3at（30W） IEEE 802.3bt（90W）
LED Indicators	PWR(Power indicator),SYS(System lights),Link(Link light), Act(data light)
Lighting Surge Protection	Common mode≥6KV, ESD: Contact≥6KV. Air≥8KV;
Mechanical	Solid metal 19” 1U rack-mountable, IP30
Power and POE
Protocol	IEEE802.3bt (90W, IEEE802.3at (30W), IEEE802.3af (15.4W)
PoE Port	48
PoE Power Output / PoE Port 1~8	max. 90 watts
PoE Power Output / PoE Port 9~48	max. 30 watts
PoE Power Output / PoE switch	max. 400 watts
Power Input	AC100~240VAC
PoE Software Function	Support PoE time management Support PoE automatic monitoring and watchdog Support PoE Port power supply and power configuration
Switch Architecture \| Performance
Switching architecture	Bandwidth:176Gbps Packet Forwarding Rate:131Mpps DDR SDRAM:512MB Flash Memory:32MB Package cache:16Mbit MAC Address:32K Jumbo frame:12Kbytes VLANs:4096 MTBF:100000 hour
Fiber Medium	Multi-mode Fiber: 50/125 、 62.5/125 、 100/140um Single-mode Fiber: 8/125、8.7/125、9/125、10/125um
ERPS Ethernet Ring Protection
ERPS Ethernet Ring Protection	Support G.8032 (ERPS), support 255 loops at most, and supports 1024 devices per ring. The self-healing time of the ring network is less than 20ms
Software Function
Basic functions	Support hardware watchdog, factory reset, system and port LED Support global information, statistical information, log information Support User management, alarm management, configuration management Support Port rate, duplex, flow control, maximum frame length configuration Support Port mirroring, port speed limit, port energy saving
Layer 3 Interface	Support Layer 3 interface Support IPv4, IPv6 address configuration Support ARP configuration Support ND configuration
Layer 3 Routing	Support IPv4 static routing Support IPv6 static routing
DHCP	Support DHCP server Support DHCP relay Support DHCP Snooping
VLAN	Support 4K VLAN Support 802.1Q VLAN，baesd on port VLAN Support Access、Trunk、Hybrid VLAN mode Support GVRP (VLAN registration protocol) Support MAC VLAN 、IP VLAN Support Voice VLAN
MAC Address	Support MAC address automatic learning and aging Support Static, dynamic, filtered address table
Security features	Password protection Support Restrict user access based on port number, IP address, MAC address Support HTTPS、SSH V1/V2 Support VLAN-IP-MAC-PORT binding Support ARP detection, IP source protection, DoS protection Support DHCP Snooping、DHCP Attack protection Support 802.1X Certification Support AAA (Authentication, Authorization, Accounting), Support RADIUS protocol, TACASC+ Support Port security, port isolation
Access control	Support L2(Layer 2)～L4(Layer 4) Packet filtering function Support Port mirroring, flow rate limiting, QoS remarking
QoS	Support 8 port queues Support Port priority, 802.1P priority, DSCP priority Support SP, WRR Priority scheduling algorithm
Spanning tree	Support STP(IEEE 802.1d), RSTP(IEEE 802.1w) and MSTP(IEEE 802.1s) protocol Support Multi-instance, Support Aggregate interface Support BPDU protection
Multicast	Support IGMP v1/v2/v3 Snooping Support MLD v1/v2 Snooping Support Layer 2 multicast fast leave mechanism, querier Support Layer 2 IPv4 static multicast Support Layer 2 IPv6 static multicast Support IGMP v1/v2/v3 Layer 3 multicast
Storm Suppression	Support multicast suppression Support broadcast storm suppression Support unknown unicast suppression
Ring protection	Support Ring protection
Link Aggregation	Support Static Aggregation Support LACP Dynamic Aggregation Support based on IP, MAC, mixed load-balancing modes Maximum support 8 aggregation groups (8 ports per aggregation group)
IPv6	Support IPv6 Ping、IPv6 Traceroute、IPv6 Telnet Support IPv6 SSH Support IPv6 HTTP 、IPv6 HTTPS
Management and Maintenance
Management and Maintenance	Support WEB Management (HTTP、HTTPS) Support CLI (Telnet, SSH V1/V2, Local serial port) Support SNMP V1/V2/V3 Support RMON V2 Support LLDP Device discovery Support SNTP Time synchronization Support CPU Monitoring, Memory Monitoring Support System log, classification warning Support Ping, Traceroute detection, cable detection Support DNS Client
Environment
Operating Temperature	-10°C to +50°C
Storage Temperature	-40°C to +70°C
Working Humidity	10%~90%, non-condensing
Storage Humidity	5%~90%, non-condensing

Ordering Information

Model	L3POE-XGS4804-400 BT L3 Managed Gigabit PoE++ 802.3at/bt switch, 400W 48-Port including 4 10G SFP+ Fiber ports.
Standard Package
Product Size	44(L) x 36(W) x 4.45(H) cm
Package Size	58(L) x 44(W) x 12(H) cm
Package Weight	N.W: 5.360KGS G.W: 6.8KGS
Package Content	PoE Switch x 1, QIG x 1, Power cord x 1, Serial cable x 1, Rack ear x 1
Carton Package
Quantity	2PCS / 1 Carton
Dimensions	60 x 46 x 26 cm
Weight	14.7KGS
