TSW100
POE+
4 x PoE+ ports with 802.3af and 802.3at support
POWER BUDGET
Total power budget at PSE up to 120 W
ETHERNET
5 x Gigabit Ethernet with speeds up to 1000 Mbps
MOUNTING
DIN rail and surface mounting options

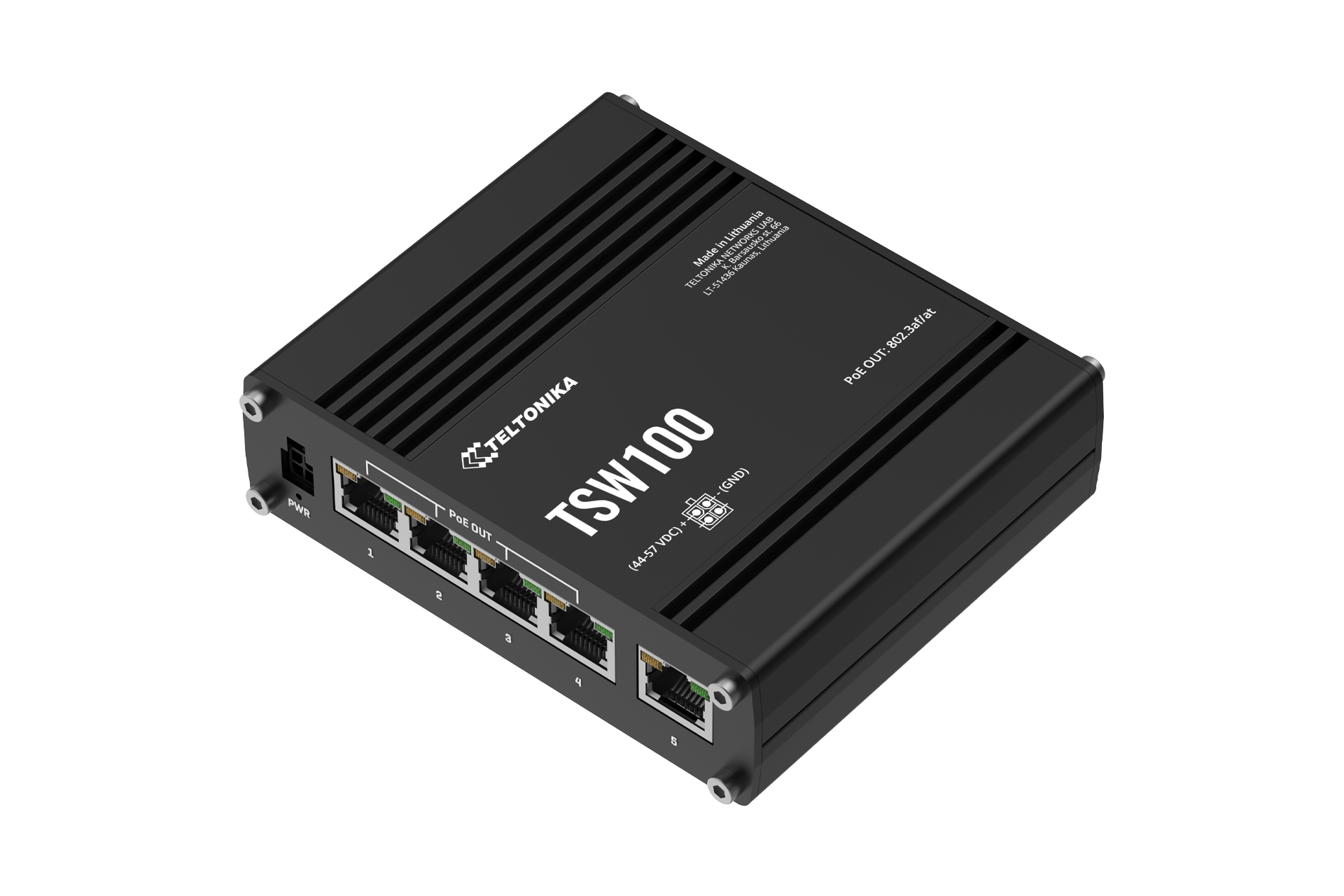

TSW100 is an unmanaged Gigabit Ethernet switch supporting Power-over-Ethernet. Classified as power source equipment (PSE), it centralizes the power supply, providing up to 30 watts per port and reducing installation effort. Five Gigabit Ethernet ports provide an economical high-bandwidth solution for a secure industrial Ethernet network.
| Industrial switch | |
|---|---|
| Profinet | Profinet Class A conformance |
| ETH | 5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover |
| IEEE 802.3 series standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
| PoE+ ports | Port 1 - 4 |
| PoE standards | IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative A IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative B |
| PoE Max Power per Port (at PSE) | 30 W |
| Total PoE Power Budget (at PSE) | 120 W |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP30 |
| Bandwidth (Non-blocking) | 10 Gbps |
| Jumbo frame support | 9216 bytes |
| MAC address table size | 2K entries |
