Name: COSEC PATH DCFM
Brand: Matrix
SKU: DCFM
Availability: InStock

01000502545
This email address is being protected from spambots. You need JavaScript enabled to view it.

Brand: Matrix

Product Code: DCFM

Availability: 10

Weight: 0.27kg

Dimensions: 4.40cm x 5.05cm x 16.00cm

Matrix DCFM MiFare Classic Card Reader

Price: 0.00EGP

Qty: - +

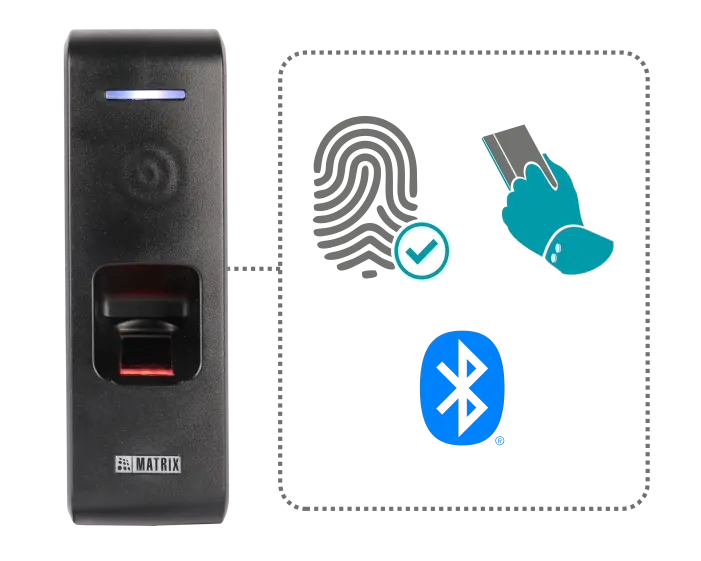

COSEC PATH DCFM, Finger and MiFare Classic Card Based Compact Biometric Door Controller is a compact biometric door controller designed for modern organizations with fingerprint as its foremost credential. Supporting multiple credentials such as Fingerprint, Bluetooth® and RFID cards, these controllers fulfill the time-attendance and access control needs of modern organizations. In particular, MiFare Classic® cards are used for RFID authentication. Next, multiple connectivity options such as WiFi, Bluetooth®, PoE ensure flexibility in operations. The IP65 design delivers a consistent performance even in harsh weather conditions.

USPs

Door Controllers with Multiple User Credentials

Biometric: Finger

RFID Cards

Mobile through BLE

Dual Verification for High-Security Applications

Door Controllers have Multiple Connectivity Options

Built-in Bluetooth, Wi-Fi, PoE, Ethernet, GSM/VoLTE options

Use Existing IT Infrastructures to Meet Future Requirements

Low IT Infrastructure Cost and Future Proof

Door Controllers with Higher User and Template Capacity

Stores up to 50,000 User Profiles

Fingerprint Template Capacity up to 25,000 in 1:N Mode

Fingerprint Template Capacity up to 1,00,000 in 1:1 Mode

Event Log Capacity of 5,00,000

Features

Secured Communication

Secure data transmission with SSL encryption, providing a highly reliable solution that is snoop-proof and hack-proof

Tamper Detection

COSEC PATH Door Controllers provide better security with tamper detection, instantly alerting to any vandalism acts, ensuring enhanced protection for devices

Weather Resistance with IP65

Offers weather resistance with an IP65 rating, providing reliable ingress protection against dust and water, making it ideal for outdoor applications

Superior Design

COSEC PATH Door Controllers feature a superior design that not only enhances the product's lifespan but also significantly improves performance, all while providing an appealing aesthetic

Plug and Play

Offers plug-and-play installation with built-in web software, ensuring fewer touches, simple management, and significantly reduced installation time

Auto Push Event Data

COSEC PATH Door Controllers eliminate the need to download event data individually, saving valuable time for the admin and ensuring an accurate employee attendance process at all times.

Applications

Time and Attendance

Access Control

Visitor Management

Contract Worker Management

Access Control
Credential Support	Bluetooth® (BLE), Fingerprint, and RFID Card
Ingress Protection	IP65
Card	MIFARE Classic®, DESFire EV1 and EV2(Read/Write), NFC Tag
Max. Users	50,000
Event Buffer	500,000
Wi-Fi	YES (IEEE 802.11 b/g/n)
Bluetooth®	YES (Configurable range: 1m – 8m)
Ethernet	Yes (10/100 Mbps)
PoE	Yes (IEEE 802.3 af)
RS-232	Yes
RS-485	Yes
Wiegand	Yes (Selectable IN/OUT) IN: 26 Bit format OUT: Configurable
Exit Switch Port	Yes
Door Status Sense	YES (2 State – open & short)
Door Lock Relay	Yes (30VDC @1A, Dry Contacts NO/NC/COM)
Door Lock Power	12V DC @ 0.5A (Power to External Lock from Device) 30V DC @ 1A (Power to Lock from External power source)
Aux-In	No
Aux-Out	No
Reader Interface Types	RS-232 and Wiegand
CPU	800 MHz ARM Cortex A8 based Processor
Memory	512 MB Flash + 512 MB DDR3 RAM
LED	Yes
Buzzer	Yes
Operating Temperature	0°C to +50°C (32°F to 122°F)
Humidity	5% to 95% RH Non-Condensing
Tamper Detection	Yes
Power	12V DC @ 2A
Power to Door Lock	12V DC @ 0.5A (Power to Lock from Device)
System Integration	API for Software Integration
Operational Modes	Direct Door with COSEC CENTRA / COSEC VYOM Panel Door with COSEC PANEL200P
Wall Mount	Yes
Power Adapter	12VDC @ 2A
Battery Backup	Yes (External- 6hrs of Battery Backup on COSEC PATH BBU & COSEC PATH PSBB)
