COSEC PATH DCCI, HiD iClass Card Based Compact Door Controller is a compact door controller designed for modern organizations. Supporting multiple credentials such as Bluetooth® and RFID cards, these controllers fulfill the time-attendance and access control needs of modern organizations. In particular, HID iClass are used for card authentication. Next, multiple connectivity options such as WiFi, Bluetooth®, PoE ensure flexibility in operations. The IP65 design delivers a consistent performance even in harsh weather conditions.

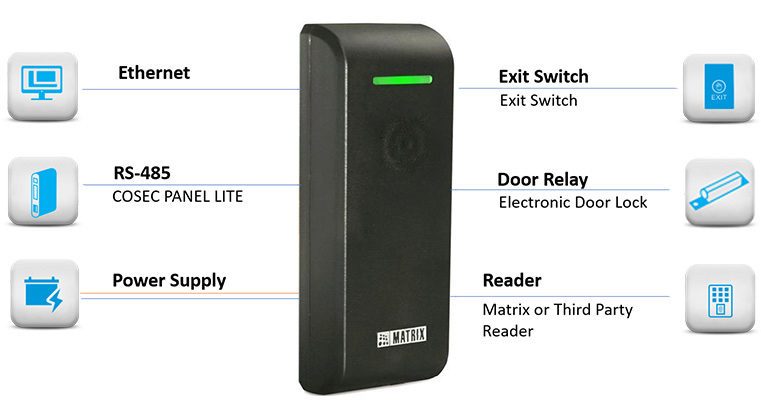

Built-in Bluetooth, Wi-Fi, PoE, Ethernet
Use Existing IT Infrastructures to Meet Future Requirements
Low IT Infrastructure Cost and Future Proof

Stores up to 50,000 User Profiles
Event Log Capacity of 5,00,000


Secured Communication
Secure data transmission with SSL encryption, providing a highly reliable solution that is snoop-proof and hack-proof

Tamper Detection
Provides better security with tamper detection, instantly alerting to any vandalism acts, ensuring enhanced protection for devices

Weather Resistance with IP65
Offers weather resistance with an IP65 rating, providing reliable ingress protection against dust and water, making it ideal for outdoor applications

Superior Design
Features a superior design that not only enhances the product's lifespan but also significantly improves performance, all while providing an appealing aestheti

Plug and Play
Offers plug and play installation with built-in web software, ensuring fewer touches, simple management, and significantly reduced installation time

Auto Push Event Data
Eliminates the need to download event data individually, saving valuable time for admin and ensuring an accurate employee attendance process at all times
| Access Control | |
|---|---|
| Credential Support | BLE and RFID Card |
| Ingress Protection | IP65 |
| Card | HID iCLASS, HID Prox (COSEC PATH DCCI) |
| Max. Users | 50,000 |
| Event Buffer | 5,00,000 |
| Wi-Fi | Yes (802.11 b/g/n) |
| Bluetooth® | Yes |
| Ethernet | Yes (10/100Mbps) |
| PoE | Yes (IEEE 802.3 af) |
| RS-232 | Yes |
| RS-485 | Yes |
| Wiegand | Wiegand IN/OUT Available |
| Exit Switch Port | Yes |
| Door Status Sense | Yes (2 States) |
| Door Lock Relay | 30V DC @ 1 A, Form C, SPDT Relay |
| Door Lock Power | Internal 12 VDC @ 0.5A or External |
| Aux-In | No |
| Aux-Out | No |
| Reader Interface Types | RS-232 and Wiegand |
| CPU | Cortex A8 800 MHz |
| Memory | 512 MB Flash + 512 MB DDR3 RAM |
| LED | Single Tri- Color LED |
| Buzzer | Yes |
| Operating Temperature | 0°C to +45°C (32°F to 113°F) |
| Humidity | 5% to 95% RH Non - Condensing |
| Tamper Detection | Yes |
| Power | 12V DC @ 2A |
| Power to Door Lock | 12V DC @ 0.5A (Power to Lock from PATH device) 30V DC @1 A (Power to lock from External power source) |
| System Integration | API for Software Integration |
| Operational Modes | Direct Door with COSEC CENTRA Server Panel Door with COSEC PANEL200P |
| Wall Mount | Yes |
| Power Adapter | 12VDC @ 2A |
| Battery Backup | Yes (External- 6hrs of Battery Backup on COSEC PATH BBU & COSEC PATH PSBB) |
