SFP28-25G-850-100m

الماركة ::
كود المنتج :: SFP 28-25G-850-100m
حالة المخزون :: من 12 الى 18 يوم
Tags: SFP28-25G-850-100m
مرفقات:
- AirLive SFP28-25G-850-100M-MP_Datasheet_29112024.pdf

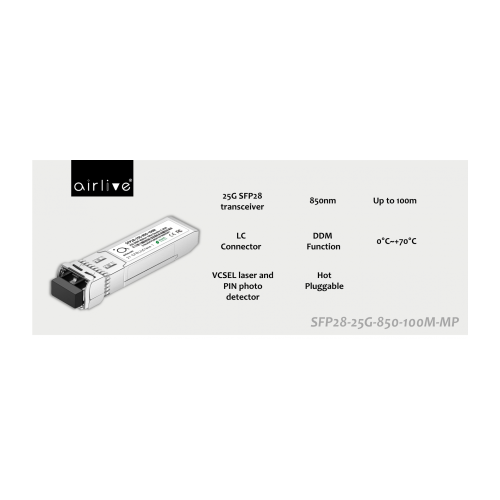

SFP28-25G-850-100M-MP: 25G SR SFP28 transceiver

السعر: 2,300.00EGP

- +

SFP28-25G-850-100M-MP: 25G SR SFP28 transceiver


The AirLive SFP28-25G-850-100M-MP transceiver adopts LC duplex connectors, reaching a link distance of up to 100m over OM4 MMF and 70m over OM3. The SFP28 transceiver module supports running on the same 1G/10G network cabling Infrastructure, giving 2.5 times increase in speed at least, and the built-in DDM function monitors the real-time operating status. The module is fully compliant with the SFF-8024, SFF-8431, SFF-8432 and SFF-8472 standards. Featuring low power consumption and high speed. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as for use in inter- and intra-connect data centers, high-performance computing networks, enterprise core and distribution layer applications.





  • Hot-pluggable SFP28 form factor
  • Supports 25.78125Gb/s bit rate
  • Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF
  • 850nm VCSEL laser and PIN photo detector
  • Internal CDR on both Transmitter and Receiver channel
  • Hot-pluggable capability
  • Single 3.3V power supply/li>
  • Low power dissipation: ＜1.0W
  • Operating environment temperature of 0°C to 70°C
  • Compliant with SFF-8024, SFF-843, SFF-8432
  • Compliant to IEEE802.3by
  • Compliant to SFF-8472
Model SFP28-25G-850-100M-MP
Hardware
Device Interface SFP28 Form Factor
LC MMF Connector
Power Supply Voltage 3.135V~3.465V
Typical Power Supply Voltage: 3.3V
Standard Compliant with SFF-8024, SFF-8431, SFF-8432
Compliant with IEEE802.3by
Compliant with SFF-8472
DDM Support
Total Supply Current 300mA
Data Rate 25.78125 Gbps
Power Consumption Max 1.0 W
Transmitter (Electrical - Optical) Operating Wavelength Range:
- Min.:840nm
- Typical: 85nm
- Max.: 860nm
Launched Power (avg.): Min. -8.4dBm, Max 2.4dBm
Optical Power OMA: Min -6.4dBm, Max 3dBm
Extinction Ratio: Min: 2.0dB
Optical Return Loss Tolerance : Max. 12dB
Transmitter Differential Input Voltage:
- Min.  95 mV
- Max. 900 mV
Receiver -Optical, Electrical Center Wavelength:
- Min. 840nm
- Typical: 850nm
- Max. 860nm
Average Receiver Power:
- Min. -10.3dBm
- Max. 2.4dBm
Los De-Assert: Max. -13dBm
Los Assert: Min. -30dBm
Los Hysteresis: Min. 0.5dB
Differential data output swing:
- Min. 300 mV
- Max. 900 mV
Environment
Operating Temperature 0°C to +70°C
Storage Temperature -40°C to +85°C
Operating Humidity 5%~85%, non-condensing
Storage Humidity 5%~90%, non-condensing

Ordering Information

Model AirLive SFP28-25G-850-100M-MP
25Gbps SFP28 SR MMF Transceiver, 850nm, LC connector, 100M, DDM, Hot-pluggable
Standard Package
Product Size 56.70(L) x 13.70(W) x 8.50(H) mm
Package Size (L) x (W) x (H) cm
Package Weight N.W: kg
G.W: kg
Package Content 1 x SFP Module
Standard Carton Package
Quantity 10PCS / 1 Blister
Dimensions (L) x (W) x (H) cm
Package Weight TBD kg
