🔍 In-Depth Review: QNAP TS-464 – A Compact Powerhouse for Modern Data Management
In an age where data is king, centralized, secure, and scalable storage solutions are no longer a luxury—they're a necessity. Whether you're a home user with a growing digital media library or a small business managing multi-user file sharing, the QNAP TS-464 stands out as a feature-rich NAS device that delivers performance, expandability, and versatility.
QNAP TS-464 – Technical Specifications at a Glance
Feature Specification
CPU Intel® Celeron® N5095, 4-core/4-thread, burst up to 2.9 GHz
Memory 4GB DDR4 RAM (1x 4GB SO-DIMM, expandable to(16GB)
Drive Bays 4 x 3.5"/2.5" SATA 6Gb/s, 3Gb/s HDD or SSD
M.2 Slots 2 x M.2 2280 NVMe PCIe Gen 3 (for SSD caching or storage pool)
Network Ports 2 x 2.5GbE RJ45 LAN (supports Port Trunking and Link Aggregation)
USB Ports 2 x USB 3.2 Gen 2 Type-A, 2 x USB 2.0
HDMI Output 1 x HDMI 2.0 (supports 4K)
Operating System | QTS 5.x
Key Features That Set the QNAP TS-464 Apart
1. Intel-Powered Performance
At the heart of the TS-464 is the Intel Celeron N5095 processor, a quad-core chip designed for low-power, high-efficiency environments. Its burst frequency of 2.9 GHz ensures that multitasking—whether it’s running media applications, managing file servers, or supporting virtual machines—remains responsive and fluid.
2. Dual 2.5GbE for High-Speed Networking
Outfitted with two 2.5 Gigabit Ethernet ports, the TS-464 delivers enhanced throughput, up to 5 Gbps with Port Trunking. This is ideal for transferring large multimedia files, backing up multiple devices simultaneously,or hosting
a collaborative file server for a small team.

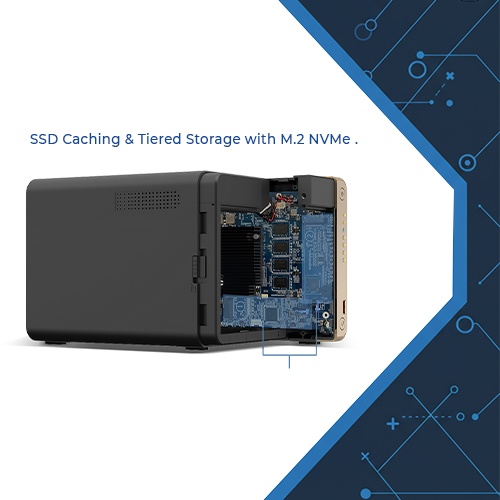

3. SSD Caching & Tiered Storage with M.2 NVMe
With two M.2 NVMe SSD slots, users can configure SSD caching or auto-tiering for accelerated read/write speeds.
This is particularly beneficial for frequently accessed files and large project libraries in photography, video editing,
or virtualization workloads.
4. 4K Multimedia Streaming and Direct Playback
The built-in HDMI 2.0 port supports 4K (60fps) output, allowing the TS-464 to function as a media player for home theaters or conference rooms. Paired with Plex or QNAP’s native Cinema28 app, the NAS becomes a full-fledged media center.
5. Expandable RAM and PCIe Slot
The system supports up to 16GB DDR4 RAM, and with the PCIe Gen 3 x2 slot, you can install expansion cards such as:
10GbE network adapters
Wi-Fi 6 wireless cards
USB 3.2 Gen 2 expansion cards
QM2 cards for additional M.2 SSDs

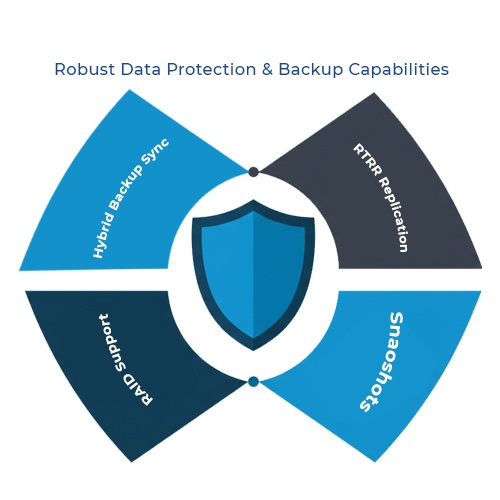

🛡️ Robust Data Protection & Backup Capabilities
1-RAID Support: RAID 0, 1, 5, 6, 10, JBOD & Single Disk configurations.
2-Snapshots: Protect against ransomware and accidental deletions with near-instant snapshot technology.
3-Hybrid Backup Sync (HBS 3): Automate backups to local, remote, or cloud destinations (Google Drive, Dropbox, Amazon S3, OneDrive, etc.).
4-Real-Time Remote Replication (RTRR): Synchronize data between QNAP NAS units in real time.

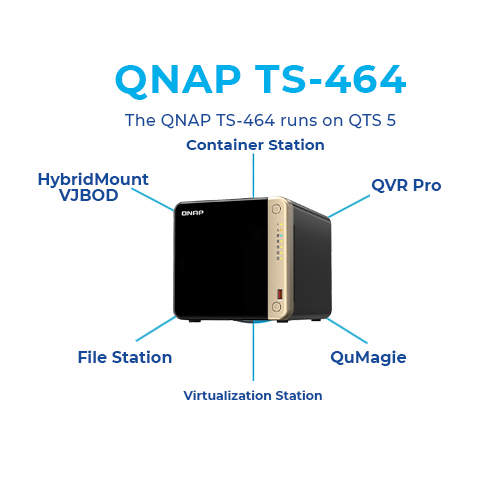

The QNAP TS-464 runs on QTS 5, a powerful and intuitive operating system that allows you to install apps from the QNAP App Center. Notable apps include:
File Station: Web-based file management
HybridMount & VJBOD: Mount cloud storage or other QNAP units
Container Station: Run Docker & LXC containers
Virtualization Station: Run full Linux/Windows virtual machines
QVR Pro: Build your own professional surveillance system
QuMagie: AI-powered photo management
✅ Pros & Cons
Pros:
High-performance Intel processor with multitasking capability
Dual 2.5GbE ports for enhanced networking
Expandable RAM and PCIe for future growth
NVMe cache support for performance boosts
QTS 5 interface with rich app ecosystem
Cons:
Pricier than ARM-based alternatives
No 10GbE out of the box (requires optional card)
Learning curve for non-technical users
The QNAP TS-464 is a standout NAS device for power users, content creators, and small businesses that demand speed, scalability, and smart data management. It’s more than just a file server—it’s a multimedia hub, backup vault, cloud gateway, virtualization platform, and surveillance system all in one compact chassis.
If you're planning to future-proof your storage infrastructure, the TS-464 offers an exceptional return on investment with powerful specs, robust software, and long-term flexibility.
