Name: POE-GSH2404M-400
Brand: AirLive
SKU: POE-GSH2404M-400
Price: 15200.00 EGP
Availability: InStock
Rating: 4.6 (5 reviews)

01000502545
This email address is being protected from spambots. You need JavaScript enabled to view it.

L3-10XGF12

POE-GSH2422-300

Brand: AirLive

Product Code: POE-GSH2404M-400

Availability: 10

Weight: 3.90kg

Dimensions: 44.00cm x 28.00cm x 4.40cm

Attachments:
- POE-GSH2404M-400.pdf

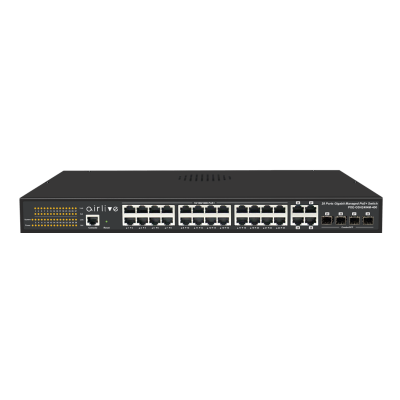

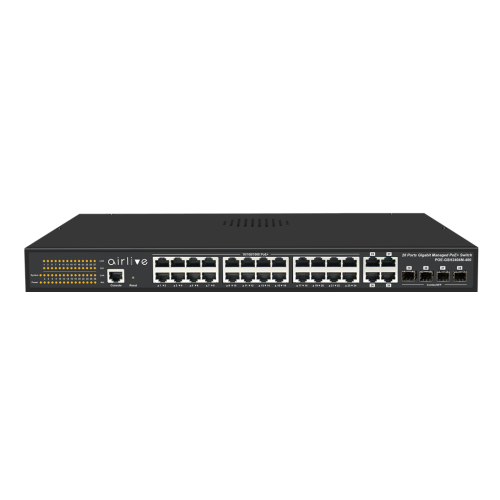

Switch 28-port 24x1G POE+ with 4xCombo(TP/SFP) with 400W.

Price: 15,200.00EGP

Qty: - +

Overview

AirLive POE-GSH2404M-400 is an L2+ managed 28-port Gigabit PoE+ switch including 24 PoE ports and 4 Gigabit SFP/TP combo ports with high 400W PoE power. Each PoE port is 802.3at/af compliant of up to 30W, automatically adaptive. It supports comprehensive SNMP management function such as IGMP Ring Network, VLAN Division, Port aggregation, QoS port mirroring, bandwidth control. Providing VLAN Division Policy function for setting higher priority for Video Conference, Surveillance, Voice, or data that prevents package loss or lags. Furthermore, the PoE watchdog can detect and restart crashed IPCAM or PD, the best 24/7 PoE device guard. No manual is required, and it can provide timely and reliable solutions for later operation and maintenance of the projects.

SNMP & PoE managed Switch with Advanced VLAN Policy for Video Conferring | Surveillance | Voice | Data

Features

All 28-port, each port delivers Gigabit high speed
Extend the network further with 4 SFP slots that accept fiber transceivers and go beyond the limits of Ethernet
400W High PoE power, ensure full power for connected device
Automatically detect and offer power for connected PD
Support L2+ SNMP and WEB Smart management function, including DHCP Snooping, VLAN, IGMP, QoS, Spanning Tree, MAC Binding and Bandwidth Control
Surveillance VLAN property and Voice VLAN support for high priority transmission
PoE watchdog support to detect and restart connected PD
Clear Statues display including traffic, CPU, Memory, POE consumption, per-port status
Web-UI for easy management; CLI and Command Script for advance setting; SNMP used for popular network tools management

Major Specifications

24 x 30W PoE 10/100/1000
4 x 1000T/SFP (combo port)
802.3at/802.3af compliant
Each port up to 30Watts; PoE Power 400W
Lighting Surge ESD protection: 6KV / Port ESD Static Protection: 15KV /Switch
L2+ SNMP v1/2/3, Trap
PoE management, PoE Watchdog
Authentication: 802.1x, AAA, TACACS+
SNMP, WEB, CLI, SSH, Telnet, RMON
VLAN Division (Surveillance, Voice, MED Conference, Data)
ERPS Ring Supported
DHCP Snooping prevents unauthorized router installed
Support 802.3az Energy Efficient Ethernet

Efficient PoE Watch Guard - PoE Watch dog technology and PoE Management

400W PoE powered Switch, POE-GSH2404M-400 will detect and provide full power to connected PD adaptively automatically. Moreover, it features PoE Watchdog technology that can automatically detect connected PD and restart the crashed devices. For example, when “PoE Watchdog” function is turned on, the switch auto-detects the front-end camera for 24/7. If there is no traffic output from the camera, it is judged that the camera is frozen, and the front-end camera is restarted through PoE power failure to solve the problem of camera crash. No manual operation is required, and it can provide timely and reliable solutions for later operation and maintenance of the system.

Automatic Surveillance VLAN Support

Choose Surveillance Mode on the Web Interface for a smooth surveillance experience with user-friendly features. Your security devices are detected automatically and segregated into a dedicated Auto Surveillance Virtual LAN, ensuring secure and efficient handling of video surveillance data. Utilize Surveillance Mode in the Web UI for easy and effortless surveillance network management. Features are designed for user convenience and the system will automatically detect your security devices and allocate them into a separate Auto Surveillance VLAN for secure and efficient handling of video surveillance traffic.

VLAN Policy for Video Conferring/Voice/Data

A VLAN policy for video conferencing, voice, and data separates network traffic for optimized performance and security. This allows for efficient management of different types of network traffic, such as video conferencing, voice communications, and data transfers, to ensure smooth and secure network operations.

DHCP Snooping Support

DHCP snooping is a network security feature that helps prevent malicious attacks by monitoring and filtering untrusted DHCP messages. It verifies the DHCP packets received on a network and only allows those from trusted sources, such as a DHCP server, to be processed, protecting against rogue DHCP servers that can potentially assign incorrect IP addresses to devices on the network

RMON Statistics Support

RMON (Remote Monitoring) statistics support is a feature in networking equipment that allows for remote monitoring and management of network performance. It provides information on network traffic, such as packet and byte counts, and allows network administrators to monitor network performance and troubleshoot network issues from a remote location. RMON statistics help provide detailed network visibility and are an important tool for network management and optimization.

Fiber for Long Distance

Fiber optic technology is used for long distance communication due to its high bandwidth capacity and immunity to electromagnetic interference. Fiber optic cables are made of thin glass or plastic fibers that carry light signals over long distances, providing fast and reliable data transmission. This makes fiber optics ideal for applications where large amounts of data need to be transmitted over long distances, such as in long-haul telecommunications and data center networks.

Fiber for Long Distance

Network Switches
Managed Type	Managed
Number of Ports	28
1GbE (RJ45)	24
1 GbE SFP	4 x Combo ports TP/SFP
Console	1 x RJ45
PoE Port	24
PoE Power Output	max. 30 watts
Total PoE Power Budget (at PSE)	max. 370 watts
Layer 3 Switching	IPv4 Static Routing IPv6 Static Routing DHCP Server
Supported Standards	IEEE802.3u 100Base-TX / 100Base-FX IEEE802.3ab Gigabit 1000Base-T IEEE802.3z Gigabit SX/LX (optical fiber) IEEE802.3x Flow Control and Back Pressure IEEE802.3ad Standard method for performing link aggregation IEEE802.1d Spanning Tree (STP)
MAC Address Table	Support static addition, deletion MAC address learning limit Dynamic aging time setting
VLAN	Access, Trunk, Hybrid Support Port-based, Protocol-Based, MAC-Base VLAN partitioning Support Generic GVRP dynamic VLAN registration Voice VLAN
Operating Temperature	-10°C to +50°C
Jumbo Frames	9.6Kbytes
LED Indicators	PWR (power supply), SYS(System), 1-24 PoE & ACT (POE), 1-24 Link & ACT (Link & ACT), 25-28 Link (Link), 25-28 Act (Act)
Input Power Type	AC100~240VAC, 400W
Port Management	Enable / Disable Port Speed, Duplex, MTU setting Flow-Control Port Information Check
Spanning Tree	Support STP 802.1d Spanning Tree protocol Support RSTP 802.1w Spanning Tree protocol Support MSTP 802.1w Spanning Tree protocol
QoS	Based on 802.1p (CoS) classification Based on DSCP Classification Classification based on source IP, destination IP and port number Support SP, WRR scheduling strategy Support flow rate limit CAR
Security	Supported
