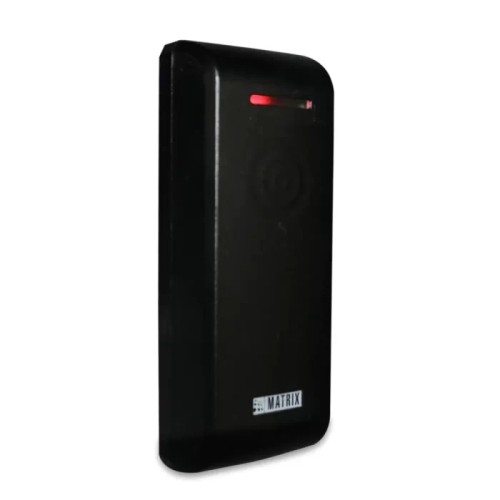

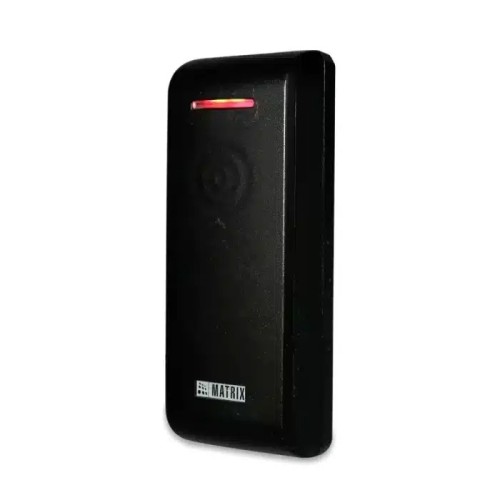

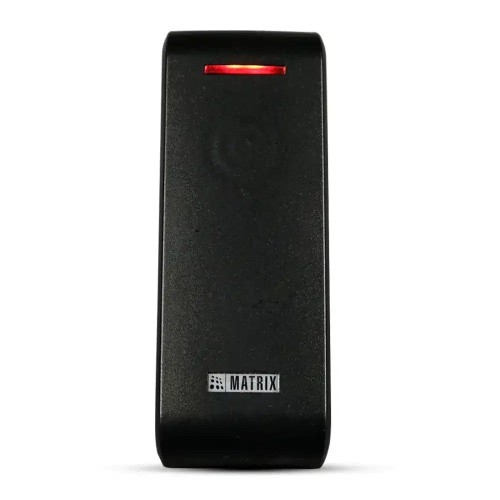

Matrix DCCE EM Proximity Card Reader
COSEC PATH DCCE is an EM Proximity Card Based Compact Door Controller designed for modern organizations. It supports multiple credentials such as Bluetooth® and RFID cards to fulfill time-attendance and access control needs. With multiple connectivity options including WiFi, Bluetooth®, and PoE, it offers maximum operational flexibility. The IP65-rated design ensures reliable performance even in harsh weather conditions.




Secured Communication
SSL encrypted data transmission for secure and reliable operations.
Tamper Detection
Instant alerts against vandalism for enhanced device protection.
IP65 Weather Resistance
Reliable protection against dust and water for outdoor applications.
Superior Design
Durable design that enhances performance and product lifespan.
Plug & Play
Fast installation with built-in web software.
Auto Push Event Data
Automatic event sync for accurate attendance records.
| Access Control | |
|---|---|
| Credential Support | Bluetooth® (BLE) and RFID Card |
| Ingress Protection | IP65 |
| Card | EM Proximity Card |
| Max. Users | 50,000 |
| Event Buffer | 500,000 |
| Wi-Fi | Yes |
| Bluetooth® | Yes |
| Ethernet | Yes (10/100 Mbps) |
| PoE | Yes (IEEE 802.3 af) |
| RS-232 | Yes |
| RS-485 | Yes |
| Wiegand | Yes (Selectable IN/OUT) IN: 26 Bit format OUT: Configurable |
| Exit Switch Port | Yes |
| Door Status Sense | Yes(2State) |
| Door Lock Relay | Yes |
| Door Lock Power | 12V DC @ 0.5A (Power to External Lock from Device) 30V DC @ 1A (Power to Lock from External power source) |
| Aux-In | No |
| Aux-Out | No |
| Reader Interface Types | RS-232 and Wiegand |
| CPU | 800 MHz ARM Cortex A8 based Processor |
| Memory | 512 MB Flash + 512 MB DDR3 RAM |
| LED | Yes |
| Buzzer | Yes |
| Buzzer | Yes |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |
| Humidity | 5% to 95% RH Non-Condensing |
| Tamper Detection | Yes |
| Power | 12V DC @ 2A |
| Power to Door Lock | 12V DC @ 0.5A (Power to Lock from Device) |
| System Integration | API for Software Integration |
| Operational Modes | Direct Door with COSEC CENTRA / COSEC VYOM Panel Door with COSEC PANEL200P |
| Wall Mount | Yes |
| Power Adapter | 12VDC @ 2A |
| Battery Backup | Yes (External- 6hrs of Battery Backup on COSEC PATH BBU & COSEC PATH PSBB) |
