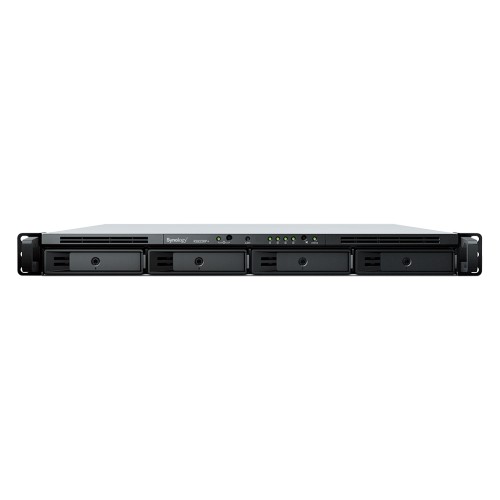

An all-in-one edge storage solutionThe compact 1U 4-bay Synology RackStation RS822+ with its storage and connectivity expandability coupled with the powerful Synology DiskStation Manager (DSM) operating system is an ideal edge storage solution for branch offices and small and medium-sized businesses.
Performance2103/1074 MB/s sequential read/write throughput
ScalabilityScale up to 8 drives with Synology Expansion Unit RX418
ConnectivityBuilt-in 4 x 1GbE ports with 10/25 GbE expansion option
MemoryUp to 32 GB DDR4 ECC Built for reliabilityRS822+ comes with four Gigabit RJ-45 ports which can be bonded with Link Aggregation to enable automatic network failover and load balancing. Two RS822+ units can be paired using Synology High Availability to form a reliable active/passive server cluster, maximizing service uptime. All-in-one data management platformThe RS822+ is designed to support small deployments in tackling common applications such as file management, data backup, and surveillance.
Edge storage for distributed teams
Multi-endpoint data protection
Smart surveillance for small deploymentsEdge storage for distributed teamsProvide secure and convenient cross-platform file access, sharing, and synchronization across multiplelocations. Enable effective collaboration with Synology DriveSynology Drive provides remote data access, synchronization, on-demand file restoration, and backup via handy desktop and mobile applications. Multi-platform supportAccess personal and shared data from mobile app, desktop client, web browser, or another Synology system: Any changes you make are automatically synced to other devices as soon as they are connected. Collaborate in real timeIntegrate with Synology Office to enable concurrent editing on documents, spreadsheets, and slides, with support for conversion to and from Microsoft Word, Excel, PowerPoint, and OpenDocument files. Connect teams with Hybrid ShareUtilize Hybrid Share to store large sets of data in the cloud, leveraging the powerful bandwidth of our data centers to stream requested files to local NAS deployed at the branch offices. Data on-demandWith Hybrid Share-enabled folders, remote teams retain full access to the most up-to-date files while benefiting from reduced local storage footprint and bandwidth usage. Cache data used locallyFrequently-accessed files are kept on the local NAS, allowing users to access them at LAN speeds. Files and folders can also be pinned manually to prevent them from being replaced when the cache is full. Multi-endpoint data protectionDesign an effective backup strategy to maximize system availability with a host of native and license-free solutions. Endpoint, VM, and NAS/SAN protectionSecurely back up Windows and Linux endpoints, Synology servers, and VMware® and Hyper-V® virtual machines with Active Backup for Business. Microsoft 365 and Google WorkspaceCentralize backups of Microsoft 365 and Google Workspace data to protect it from accidents and simplify compliance with data retention policies. Schedulable backups, flexible file versioning, and block-level deduplication ensure flexibility and savings in terms of storage and bandwidth consumption. Hyper BackupBack up files, LUNs, installed applications, and system configurations to destinations including Synology C2 Storage, public cloud platforms, USB devices, file servers, local folders, or other Synology systems. Set and forget backup tasks with regular schedules, enhance security with granular user permissions and encryption, keep backup sizes small with built-in deduplication, and restore data flexibly with multi-versioning. Snapshot ReplicationSnapshot Replication enables configurable point-in-time snapshots of shared folders and VM storage with an RPO as low as 5 minutes and recovery within seconds. Smart surveillance for small deploymentsLeverage flexible deployment options, intuitive management capabilities, and advanced video analytics to secure your premises. Wide compatibilityConnect up to 40 IP cameras from a selection of over 8,300 validated models thanks to Synology Surveillance Station's wide camera compatibility. Multi-platform convenienceMonitor live streams or watch recordings from web browser, desktop client, or the DS cam mobile app. Secure and privateFootage is stored locally for easier compliance with data protection regulations and further protected from unauthorized access with industry-standard AES-256 encryption. |
|
DSM Specifications
|
RS822+
|
|
|---|---|---|
| Storage Management | Maximum Single Volume Size | 108 TB |
| Maximum Internal Volume Number | 64 | |
| SSD Read/Write Cache (Determining cache size) | ||
| SSD TRIM | ||
| Supported RAID Type |
|
|
| RAID Migration |
|
|
| Volume Expansion with Larger HDDs |
|
|
| Volume Expansion by Adding a HDD |
|
|
| Global Hot Spare Supported RAID Type |
|
|
| File System | Internal Drives |
|
| External Drives |
|
|
| File Services | File Protocol |
|
| Maximum Concurrent SMB/AFP/FTP Connections | 500 | |
| Maximum Concurrent SMB/AFP/FTP Connections (with RAM expansion) | 2,000 | |
| Windows Access Control List (ACL) Integration | ||
| NFS Kerberos Authentication | ||
| Account & Shared Folder | Maximum Local User Accounts | 2,048 |
| Maximum Local Groups | 256 | |
| Maximum Shared Folder | 512 | |
| Maximum Shared Folder Sync Tasks | 16 | |
| Hybrid Share | Hybrid Share Folder Number | 10 |
| Hyper Backup | Folder and Package Backup | |
| Entire System Backup | ||
| High Availability | Synology High Availability | |
| Log Center | ||
| Syslog Events per Second | 800 | |
| Virtualization | VMware ESXi 6.5 and VAAI | |
| Windows Server 2016 | ||
| Windows Server 2022 | ||
| Citrix Ready | ||
| OpenStack | ||
| General Specifications | Supported Protocols | SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV |
| Supported Browsers |
|
|
| Supported Language | English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文 | |
| Central Management System | ||
| Synology Chat | ||
| Suggested Users | 150 | |
| Download Station | ||
| Maximum Concurrent Download Tasks | 80 | |
| SAN Manager | ||
| Maximum iSCSI Target Number | 128 | |
| Maximum LUN | 256 | |
| LUN Clone/Snapshot, Windows ODX | ||
| Synology MailPlus / MailPlus Server | ||
| Free Email Accounts | 5 (Additional accounts require purchase of licenses) | |
| Suggested Users | 750 | |
| Maximum Server Performance | 1,484,000 emails per day, approx. 45GB | |
| Media Server | ||
| DLNA Compliance | ||
| Synology Photos | ||
| Facial Recognition | ||
| Object Recognition | ||
| Snapshot Replication | ||
| Maximum Snapshots per Shared Folder | 1,024 | |
| Maximum of System Snapshots | 65,536 | |
| Surveillance Station | ||
| Default Licenses | 2 (Additional cameras require purchase of licenses) | |
| Suggested Maximum IP Cameras and Total FPS (H.264) |
|
|
| Suggested Maximum IP Cameras and Total FPS (H.265) |
|
|
| Synology Drive | ||
| Recommended Number of Concurrent Sync Clients | 550 (the number of connections that can be maintained when the recommended number of hosted files was reached) | |
| Recommended Number of Hosted Files | 50,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above) | |
| Synology Office | ||
| Suggested Users | 4,500 | |
| Virtual Machine Manager | ||
| Recommended Virtual Machine Instances | 8 (Learn more) | |
| Recommended Virtual DSM Number (Licenses required) | 8 (including 1 Free License) | |
| VPN Server | ||
| Maximum Connections | 40 | |
| NAS | |
|---|---|
| CPU Model | AMD Ryzen V1500B |
| CPU Quantity | 1 |
| CPU Core | 4 |
| CPU Architecture | 64-bit |
| CPU Frequency | 2.2 GHz |
| Hardware Encryption Engine | Yes |
| Memory | 2 GB DDR4 ECC SODIMM |
| Drive Bays | 4 |
| Compatible Drive Type | 3.5 |
| Hot Swappable Drive | Yes |
| RJ-45 1GbE LAN Port | 4 |
| USB 3.2 Gen 1 Port | 2 |
| System Fan | 40 mm x 40 mm x 3 pcs |
| Power Supply Unit / Adapter | 150 watts 100 V to 240 V AC 50/60 Hz, Single Phase |
| Total Memory Slots | 2 |
| Maximum Memory Capacity | 32 GB (16 GB x 2) |
| Expansion Port | 1 |
| PCIe Expansion | 1 x Gen3 x8 slot (x4 link) |
| Form Factor (RU) | 1U |
