TSW110
Overview

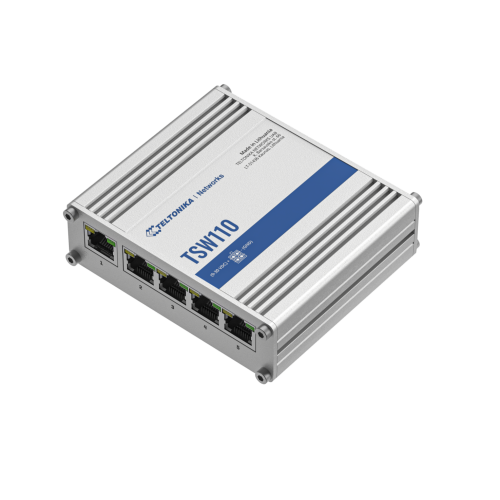

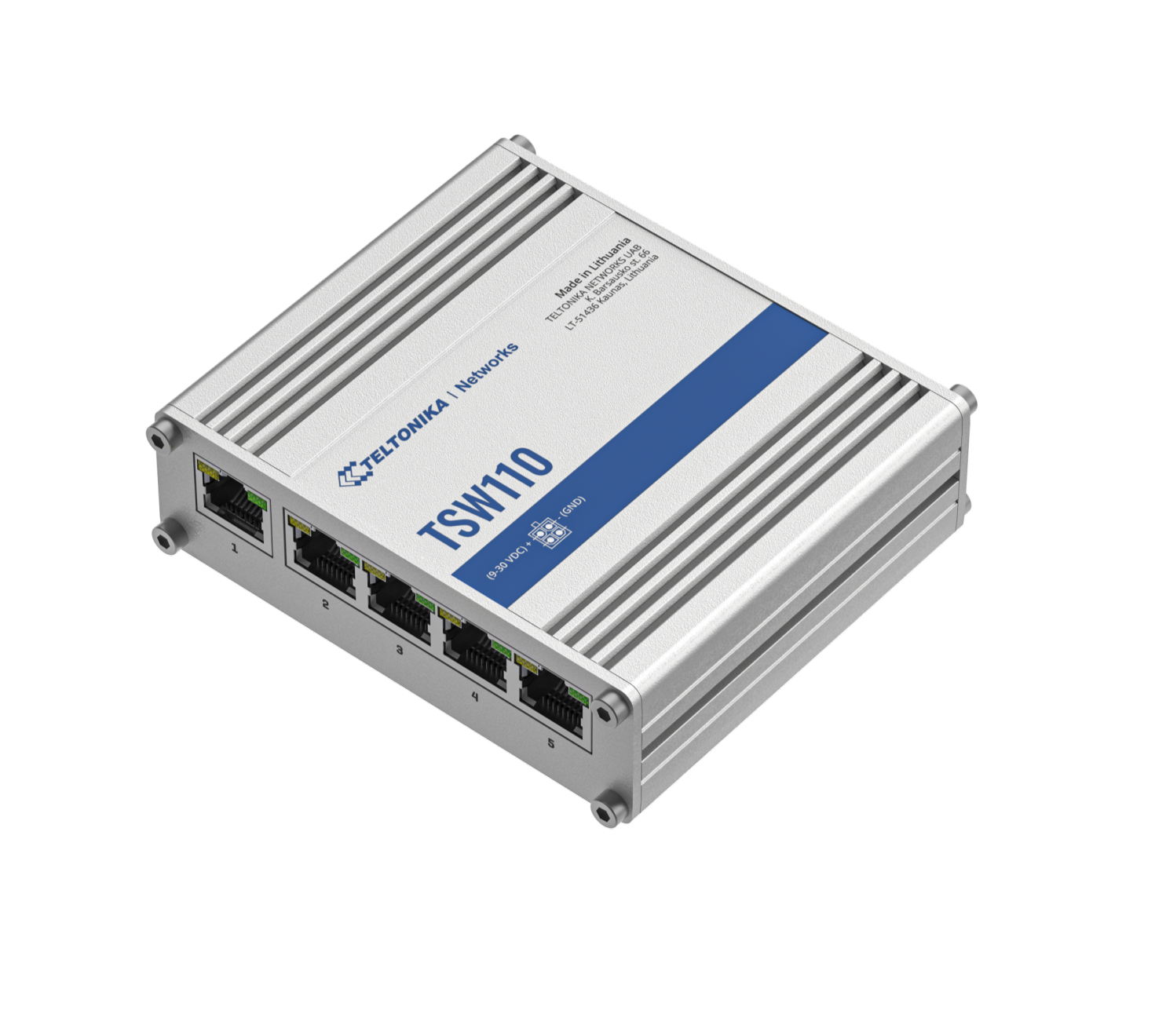

TSW110 is an unmanaged layer 2 Ethernet switch. This tiny but rugged professional device enables industrial high-bandwidth applications with a reliable data connection. It has five Gigabit Ethernet ports to connect equipment to the network and supports wide power supply voltages (9-30 V).
GIGABIT ETHERNET
5 x Gigabit Ethernet with speeds up to 1000 Mbps.
DURABILITY
Rugged aluminium housing.
MOUNTING
DIN rail and surface mounting options.
TEMPERATURE
Operating temperature from -40 °C to 75 °C.
| Industrial switch | |
|---|---|
| Profinet | Profinet Class A conformance (available with optional order code) |
| ETH | 5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover |
| IEEE 802.3 series standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP30 |
| Input voltage range | 9 – 30 VDC |
| PoE (passive) | Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC |
| Connector | 4-pin industrial DC power socket |
