Name: WEB-2TX2402
Brand: AirLive
SKU: WEB-2TX2402
Price: 20950.00 EGP
Availability: InStock

01000502545
This email address is being protected from spambots. You need JavaScript enabled to view it.

Brand: AirLive

Product Code: WEB-2TX2402

Availability: 10

Weight: 2.61kg

Dimensions: 44.00cm x 20.50cm x 4.40cm

Attachments:
- WEB-2TX2402.pdf

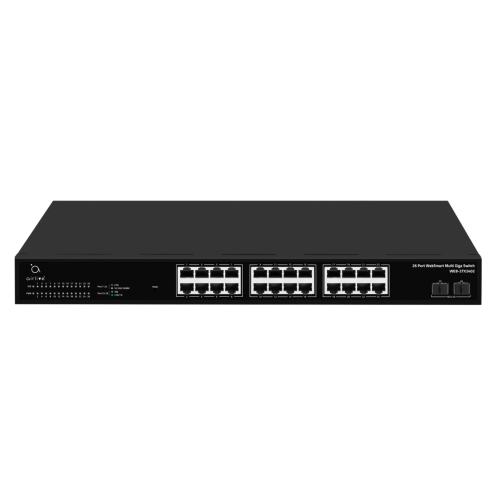

26-port 2.5Gbps WebSmart Multi Gigabit Switch

Price: 20,950.00EGP

Qty: - +

Overview

The AirLive Multi-Giga switch, WEB-2TX2402, is a Web Managed switch, which supports 24 RJ45 and 2 SFP+ ports for delivering up to 2.5Gbps extra high-speed connection on RJ-45 and 10G SFP+ on fiber optic. Supports WEB Management function and is easy to manage and maintain. The easy to operate WEB-2TX2402 has several functions like VLAN setting for a more secure connection. QoS to have more control of the bandwidth and many more like, IGMP, Loop Prevention, Port-Base Mirroring, Port Isolation, Bandwidth Control, Security (MAC Address /table /search / static MAC; Storm control and more. With the 2.5G multi-Giga switch, you can connect to a variety of 2.5GbE-enabled devices, such as NAS | NVR | PC | Server | Laptop, for enjoying faster experience and handle bandwidth-hungry applications. Designed in a slim sized solid housing, it’s an affordable, space-saving solution suitable to Home and SMB network applications.

Painless Upgrading your Network Connection to 2.5Gbps & SFP+ 10G Super High speed Web Management Switch

Features and Specifications

24 x 10/100/1000/2500Mbps RJ45
2x 10G SFP+
Web Smart Management
QoS; Priority management
VLAN: enhanced security and performance
Loopback Detection
All ports at Multi Gigabit high speed, auto-negotiation

Features and Specifications

Providing satisfied bandwidth for various network devices, such as online gaming, multi-media, NAS, Server system
Super Fast 2.5Gbps RJ-45 and 10Gbps SFP+
Existing Cat5e cable suitable (Cat6a needed for 10G), painless upgrading
Compact size for Home or SMB Network Connectivity

Multi Gigabit for Interconnect

With the AirLive WEB-2TX2402 2.5Gbps switch, it is possible to connect several high-speed devices together via RJ-45 connections using a normal Cat.5e network cable. Higher bandwidth improves the playback quality of 4K/8K videos, prevents lag for Gaming, smooths speed when download or upload large data, increases data transfer speed when doing backup to a NAS drive. Use the 10G SPF+ as uplink to a larger network with higher speed.

VLAN for enhanced network security

The VLAN 802.1Q VLAN tagging settings can be used to separate traffic within a business such as isolating resources between network administrators and general users or between employees and public guest users. With the help of VLAN interface, switches can communicate with other network layer devices.

IGMP Snooping Multicast

Multicast protocols is compliant with IGMP v1/v2/v3 and supports abundant multicast features such as IGMP v2/v3 snooping and fast leave. By analyzing the IGMP messages received, L2 devices establish a mapping between ports and MAC multicast addresses and forward the multicast data accordingly.

QoS & Applications

QoS
(Quality of service) is the ability to provide different priority to different applications, users, or video/voice/data flows, or to guarantee a stable level of performance to each data flow. This can be with Port-based Priority or Priority to queue.
2.5 Times Faster
2.5GbE is 2.5 times faster than standard Ethernet (1GbE), high network performance to boost productivity
Works with existing cables
No special cables or connectors are required to take advantage of 2.5GbE. Simply use your existing CAT5e cables as normal with your new 2.5GbE infrastructure.
Video Streaming
Higher bandwidth improves the playback quality of 4K/8K videos.
Gaming
No lag when you are Gaming.

QoS & Applications

AirLive
Device Interface	24 x 10/100/1000/2500 RJ45 2x 1.25G/2.5/10G SFP+ 26-port totally Auto MDI/MDIX
Standards	IEEE802.3u 100Base-TX IEEE802.3ab Gigabit 1000Base-T IEEE802.3bz 2.5GBase-T IEEE 802.3z 1000BASE-X Gigabit Ethernet (optical fiber) IEEE 802.3ae 10G Ethernet (optical fiber) IEEE802.3x Flow Control and Back Pressure IEEE 802.3ad port trunk with LACP
Power Input	AC 100~240V
Switching architecture: Store and Forward	Switch Capacity: Back-plan up to 160Gbps Packet Forwarding Rate; 119.04Mpps Packet Cache: 12Mbit MAC Address: 16K VLAN: VLAN range 1-4094, with a maximum active VLAN of 31 Transfer mode: Store and Forward MTBF:100000 hour
Port Management	Port Switch Configuration, Port Description Configuration, Port Duplex Configuration, Port Flow Control Configuration, Jumbo Frame up to 16356bytes, EEE
Port Mirroring	One to one monitor, Many to one monitor, Ingress/Egress/Both, Up to 4 session groups
Port Isolation	Supported
VLAN	Access/Trunk/Hybrid, VLAN Tunnel (Q-in-Q Tunnel), VLAN range 1-4094, maximum active VLAN is 31
MAC	Static MAC address, MAC Address Filtering
Spanning Tree	STP/RSTP, BPDU Filter, BPDU Guard, Edge Port
Multicast	IGMP Snooping, IGMP V1/V2/V3, Router Port, Static Multicast
QoS	Traffic classification based, Strict priority and WRR, Port Priority, 802.1P Priority, IP DSCP Priority, Supports up to 8 queues per port, Priority Remark
Anti-attack (Security)	MAC Address Constraints, Protect/Restrict/Shutdown
