Name: SFP-SX-1.25G-500M
Brand: AirLive
SKU: SFP-SX-1.25G-500M
Price: 990.00 EGP
Availability: InStock

01000502545
This email address is being protected from spambots. You need JavaScript enabled to view it.

Brand: AirLive

Product Code: SFP-SX-1.25G-500M

Availability: 10

Dimensions: 56.50cm x 13.40cm x 8.50cm

Attachments:
- SFP-SX-1.25G-500M.pdf

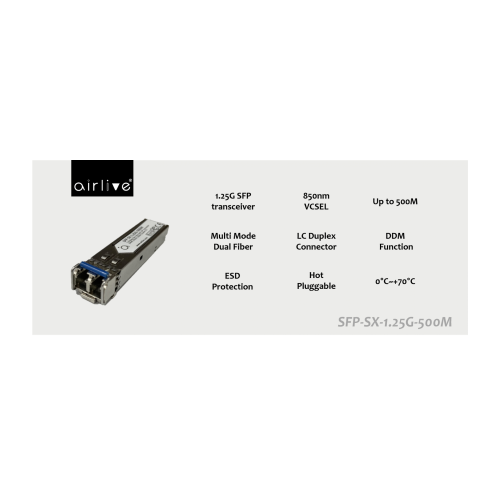

1.25Gbps Fiber Mini GBIC SFP Transceiver

Price: 990.00EGP

Qty: - +

Overview

The AirLive SFP-SX-1.25G-500M is a low power, high performance and cost-effective multi mode SFP Fiber transceiver for serial optical data communication applications up to 1.25Gbps and 500M. The low jitter and high sensitivity module is intended for single mode dual fiber and operates at a nominal wavelength of 850nm, the operating temperature 0°C~70°C and the module is hot pluggable.
The transceiver incorporates TX Disable control, TX-Fault, and RX_LOS monitor functions. It is a duplex LC connector transceiver designed for use in Gigabit Ethernet applications and to provide IEEE802.3z compliant link and Class I Laser safety compliant link.
The suitable applications are such as High-speed storage area networks, computer cluster cross-connect, customized high-speed data pipes, and more.

Features

1.25Gbps Fiber Mini GBIC SFP Transceiver
Multi mode SFP fiber
Duplex LC connector Interface
Wavelength 850nm VCSEL Laser and PIN photo detector
1.25Gbps high speed
Distance up to 500M
Low Power consumption Max 1.0W
Hot-pluggable capability
Very low EMI
Excellent ESD protection
IEEE802.3Z
Operating Temperature：0 °C ~ +70 °C

Applications

Fiber Channel Infrastructure
STM-16 Optical Interface
ATM Switches and Routers
SDH/SONET Switch Infrastructure

Application Environment examples

Bank
AirPort
Hotel
Expressway
Petrochemical Industry
Metro
Factory

Transmitter Operating Characteristic Optical, Electrical

Receiver Operating Characteristic Optical, Electrical

Fiber for Long Distance up to 500M

Extend the network further with the AirLive network switches and fiber modules. Use the SFP modules in the SFP ports which also supports DDM and offers more information about the fiber connection and makes it easier to find any faults or bad connections.
