Name: POE-2TX801-100 AT
Brand: AirLive
SKU: POE-2TX801-100 AT
Availability: OutOfStock

01000502545
This email address is being protected from spambots. You need JavaScript enabled to view it.

Brand: AirLive

Product Code: POE-2TX801-100 AT

Availability: 12-18 Days

Weight: 0.91kg

Dimensions: 22.00cm x 16.10cm x 4.40cm

Attachments:
- POE-2TX801-100 AT.pdf

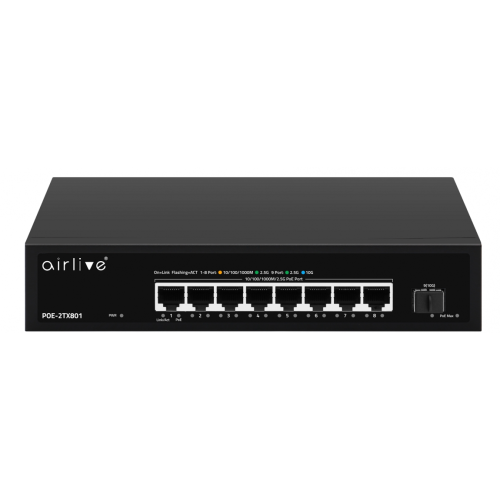

9-port 2.5Gbps Multi Gigabit POE Switch

Price: 0.00EGP

Qty: - +

Overview

The AirLive Multi-Giga switch POE-2TX801-100 is compliant with 802.3af(15W)/802.3at(30W) it supports 8 PoE 2.5G RJ45 ports and 1 10G SFP+ port for delivering high-speed connections on RJ-45 and SFP+. With the 2.5G multi-Giga switch, you can connect to a variety of 2.5GbE-enabled devices, such as NAS | NVR | PC | Server | Laptop, for enjoying faster experience and handle bandwidth-hungry applications. . The total PoE power is 100W which can power on several PoE devices like Access Points and IP Cameras. Designed in a slim sized solid housing, it’s an affordable, space-saving solution suitable to Home and SMB network applications.

Painless Upgrading to 802.3af/af PoE 2.5Gbps & SFP+ 10G Super High speed

Features

All 9-port, each port delivers Multi Gigabit high speed
8 x PoE port 10/100/1000/2500M (up to 30W) + 1 x UpLink Port 10G SFP+
PoE Priority
Extend the network further with 1 SFP+ slot that accept fiber transceivers and go beyond the limits of Ethernet
PoE power, supports 802.3af/802.3at PoE+

Features

Internal Power, 100W
Providing satisfied bandwidth for various network devices, such as online gaming, multi-media, NAS, Server system
Existing Cat5e cable suitable, painless upgrading
Plug and Play, Zero configuration

PoE at High Speed and PoE Priority

Connect several PoE devices to the switch, Access Points or normal IP cameras can connect to any of the PoE ports on the switch and be powered on up to max 30W (at). With the 2.5G RJ45 ports and 10G SFP+ Uplink port bandwidth would not be an issue. PoE Priority is supported for the PoE Power from port 1~8, this can be helpful for a IPCAM or high priority preferred device. This function is turned on by default.

PoE at High Speed and PoE Priority

Multi Gigabit for Interconnect

With the AirLive POE-2TX801-100 2.5Gbps switch, it is possible to connect several high-speed devices together via RJ-45 connections using a normal Cat.5e network cable. Higher bandwidth improves the playback quality of 4K/8K videos, prevents lag for Gaming, smooths speed when download or upload large data, increases data transfer speed when doing backup to a NAS drive. Use the 10G SPF+ as uplink to a larger network with higher speed.

AirLive
Device Interface	8 x 30W PoE 10/100/1000/2500Mbps RJ45 1x 10G SFP + 9-port totally
Standards	IEEE802.3u 100Base-TX IEEE802.3ab Gigabit 1000Base-T IEEE802.3bz 2.5GBase-T IEEE 802.3z 1000BASE-X Gigabit Ethernet (optical fiber) IEEE 802.3ae 10G Ethernet (optical fiber) IEEE802.3x Flow Control IEEE802.3af/at PoE
PoE Port	8
Power Input	: AC100~240V
Switching architecture: Store and Forward	Switch Capacity: Back-plan up to 60Gbps Pack forward rate; 44.65Mpps MAC Address: 4K Transfer mode: Store and forward MTBF:100000 hour
