Name: POE-GSH2422-300
Brand: AirLive
SKU: POE-GSH2422-300
Price: 7400.00 EGP
Availability: InStock
Rating: 4.6 (5 reviews)

01000502545
This email address is being protected from spambots. You need JavaScript enabled to view it.

POE-GSH2404M-400

POE-2TX801-150 AT

Brand: AirLive

Product Code: POE-GSH2422-300

Availability: 10

Weight: 1.97kg

Dimensions: 32.00cm x 20.70cm x 4.40cm

Attachments:
- POE-GSH2422-300.pdf

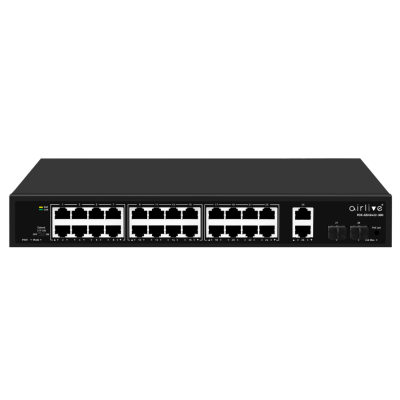

Switch 28-port 24x1G POE+ with 2xUplink RJ-45 with 2xUplink SFP with 300W

Price: 7,400.00EGP

Qty: - +

Overview

The AirLive POE-GSH2422-300 Gigabit switch is compliant with 802.3af(15W)/802.3at(30W) It supports 24 Gigabit PoE ports and 4 uplink ports including 2x 1G RJ45 and 2x 1G SPF Fiber. Total of PoE power budget is 285W. The AirLive POE-GSH2422-300 switch is a plug and play unmanaged PoE switch with PoE Priority and 250meter cabling extension, which can be easily set up via its DIP switch. The four Gigabit Uplink ports (2x SFP and 2x RJ-45) help with connecting the switch to a larger network making the it the most cost-efficient client switch for various applications at Home or Office. Connect several PoE devices to the switch, Access Points or normal IP cameras can connect to any of the PoE ports on the switch and be powered on up to max 30W (at).

802.3af/at PoE Gigabit Switch, with 2x SFP and 2x RJ45 Uplink

Features

All 28-port, each port delivers Gigabit high speed.
24 x PoE port up to 30W 10/100/1000Mbps RJ-45
2 x 1000T RJ-45 Uplink port.
2x 1Gbps SFP Uplink port.
PoE Priority
Extend the network further with 2 SFP slots that accept fiber transceivers and go beyond the limits of Ethernet.

Features

PoE power, supports 802.3af/802.3at PoE+.
Internal Power, 300W, Max PoE budget 285W.
Extended Mode: transmission of up to 250M in Extend Mode Setting by hardware DIP switch.
PoE Watchdog in Extended Mode.
Surge Protection; ESD Protection.

Fiber backbone for Long Distance and Interconnect between floors

Extend the network further with SFP slot. Use the POE-GSH2422-300 fiber port to connect different floors together in a large building or to the main office over a longer distance. Depending on the module used it can reach up to 20KM in distance with 1250Mbps data transmission rate.

PoE and Extend Mode

Connect several PoE devices to the switch, Access Points or normal IP cameras can connect to any of the PoE ports on the switch and be powered on up to max 30W (at). The POE-GSH2422-300 switch can be set in Extend mode to reach a distance of up to 250m, this can be very useful in locations where it hard to get power to turn on your PD device. The Extend mode makes this easier. The Extend mode is only for Port 17 and 24 on the switch and when enabled the transmission rate will be 10Mbps. PoE Watchdog is also enabled when Extend mode is on.

PoE and Extend Mode

Network Switches
Managed Type	UN Managed
Number of Ports	28
1GbE (RJ45)	26
1.25 GbE SFP	2
PoE Port	24
PoE Power Output	max. 30W (port 1~24)
Total PoE Power Budget (at PSE)	285W Max
MAC Address Table	8K
Operating Temperature	-10°C to +40°C
Jumbo Frames	15Kbytes
LED Indicators	PWR (Power), 1-28 Green LED (Link & Data), 1-24 (Yellow LED), DIP Switch Mode LED PoE Max LED: Off: indicates PoE power usage is less than 90% Flashing: indicates PoE power usage of 90% ≤ P ≤ 95% On: indicates that PoE power is used at 95%
Input Voltage Range	AC100~240V
Power Supply Description	52V/5.76A (300W) Internal.
Max. Power Consumption	14.27W
