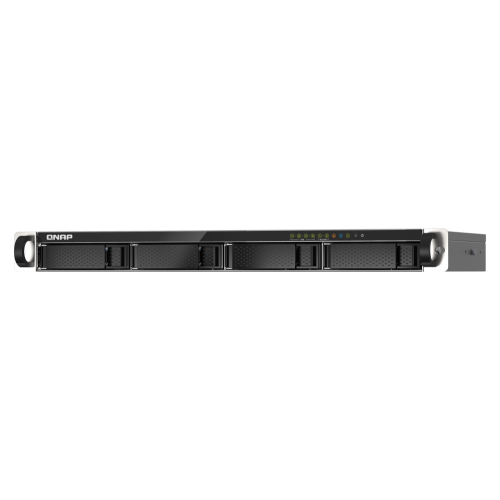

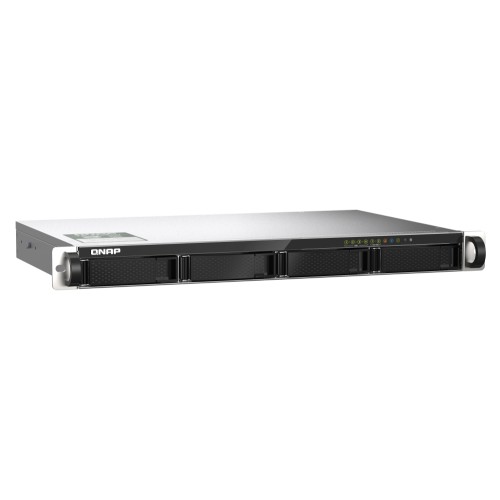

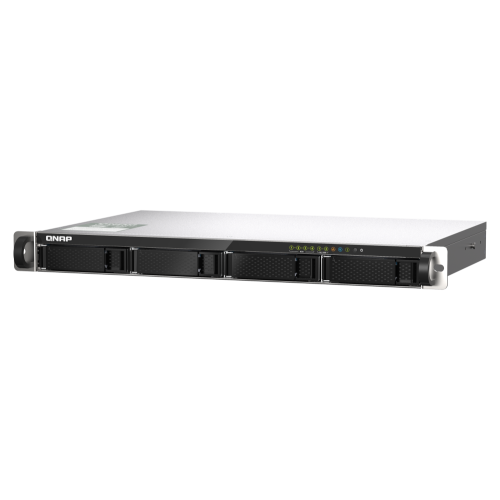

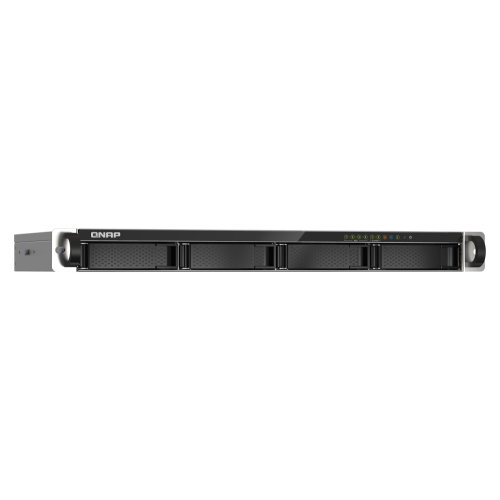

The compact and feature-rich TS-435XeU provides a professional-grade quad-core NAS solution in short depth rackmount form factor. The native 10GbE SFP+ and 2.5GbE connectivity alongside M.2 NVMe SSD slots that enable cache acceleration allows businesses to efficiently tackle everyday tasks like file backup/restore and to boost team collaboration with higher productivity. The space-efficient short depth design makes the TS-435XeU easy to install in small media cabinets or places with a lot of cabling. Supporting abundant business applications (including file sharing and sync, snapshot protection, containerization, cloud storage gateways, and video streaming), expandable storage capacity, and install-on-demand apps, the TS-435XeU is an ideal cost-effective entry-level rackmount NAS.

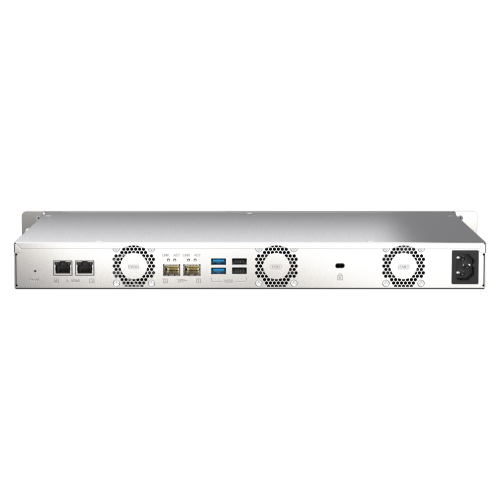

Dual-port 10GbE SFP+ connectivity accelerates intensive file access, large backup/restoration tasks, and media transfer.
Up to 5 Gbps transfer speeds can be made by setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports.
Dual M.2 PCIe Gen 3 NVMe SSD slots enable cache acceleration or SSD storage pools for improved performance.
Host multiple containerized apps to run a wide range of applications and services.
Build a surveillance system with lower TCO and higher scalability with the subscription-based QVR Elite smart surveillance solution.
Scale your storage capacity to fit growing data needs by connecting QNAP’s expansion units.
| Network Switches | |
|---|---|
| Form Factor | 1U Short Depth Rackmount |
| Buttons | Power, Reset |
| Jumbo Frames | ✓ |
| LED Indicators | HDD 1-4, Status, LAN, USB, M.2 SSD 1-2 |
| NAS | |
| CPU Model | Marvell OCTEON TX2™ CN9130 / CN9131 ARMv8 Cortex-A72 4-core 2.2GHz processor |
| CPU Architecture | 64-bit ARM |
| Hardware Encryption Engine | ✓ |
| Memory | 4 GB SODIMM DDR4 (1 x 4GB) |
| Drive Bays | 4 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Compatible Drive Type | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot Swappable Drive | ✓ |
| Total Memory Slots | 1 x SODIMM DDR4 |
| Maximum Memory Capacity | 32 GB (1 x 32 GB) |
| M.2 Drive Slots | 2 x M.2 2280 PCIe Gen 3 x1 slots |
| Floating Point Unit | ✓ |
| Flash Memory | 4GB (Dual boot OS protection) |
| SSD Cache Acceleration Support | ✓ |
| Industrial switch | |
| Operating system | QTS 5.2.6 |
