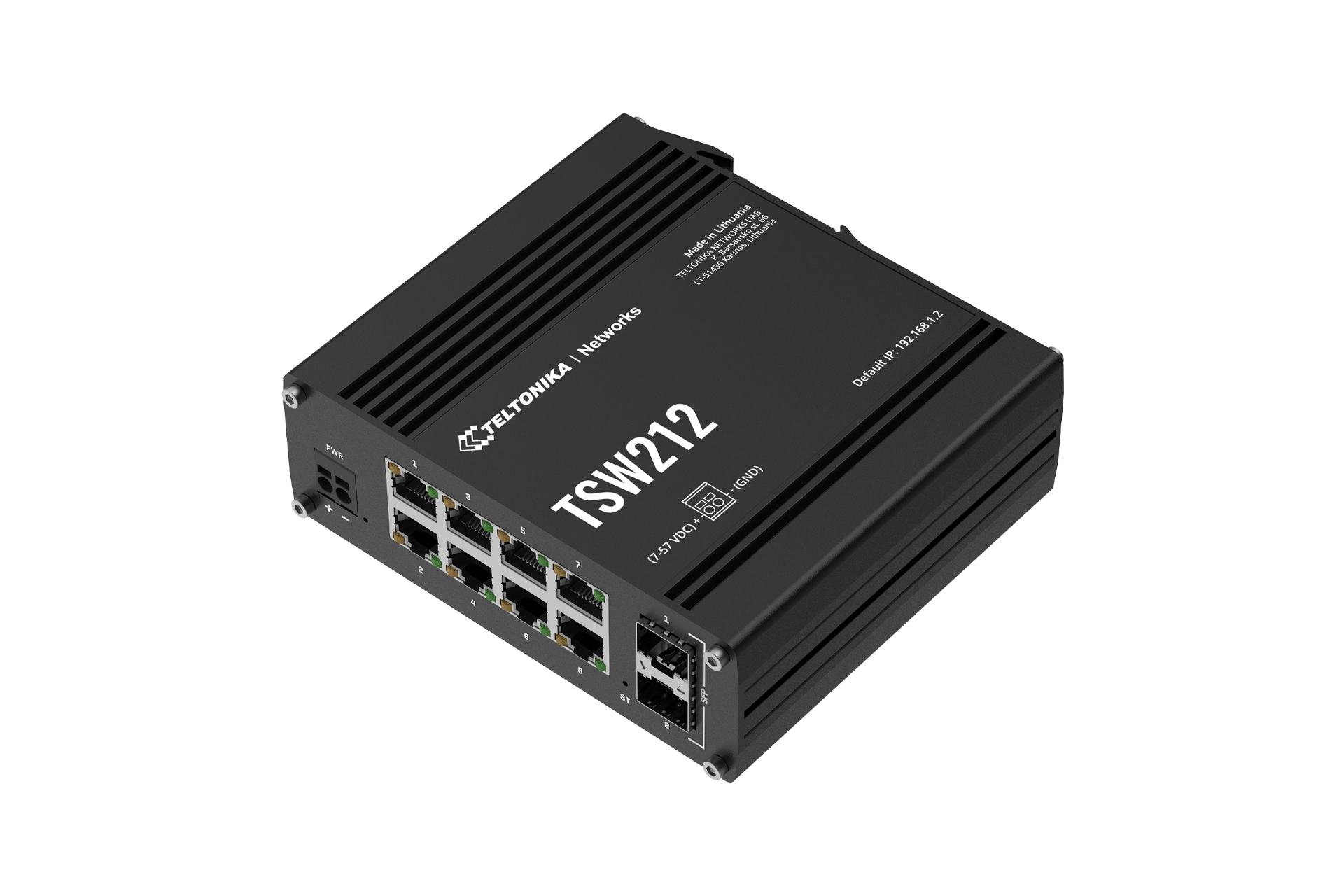

Name: TSW212
Brand: تيلتونيكا
SKU: TSW212
Price: 8600.00 EGP
Availability: InStock

01000502545
عنوان البريد الإلكتروني هذا محمي من روبوتات السبام. يجب عليك تفعيل الجافاسكربت لرؤيته.

الماركة :: تيلتونيكا

كود المنتج :: TSW212

حالة المخزون :: 10

الوزن: 0.62kg

الأبعاد: 12.22cm x 13.20cm x 4.42cm

مرفقات:
- tsw212 data sheet.pdf

8×GE + 2×SFP, L2+ Managed Switch

السعر: 8,600.00EGP

الكمية: - +

Overview

TSW212 is an L2 managed Ethernet switch with additional L3 features, like DHCPv6 client support and static IPv6 routing. This switch supports protocols, including EtherNet/IP, PROFINET, and MRP, and has 8 Gigabit Ethernet ports and 2 SFP ports to ensure robust long-range fibre optic communication.

SFP

2 x SFP ports for long-range Fiber-optic communication.

PoE+

8 x PoE+ ports with 802.af, 802.3at standard support.

POWER BUDGET

Total power budget at PSE up to 240 W.

ETHERNET

8 x Gigabit Ethernet with speeds up to 1000 Mbps.

Industrial switch
Profinet	Profinet Class B conformance (available with optional order code)
ETH	Multi-layer managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossover
Fibre	2 x SFP ports
IEEE 802.3 series standards	802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
MRP	MRP client role, MRP manager role
MRP	MRP client role, MRP manager role
L2 features	Loop protection, Forwarding table, VLAN, STP/RSTP
DHCP	DHCP server, DHCP client, DHCP static leases capable of using MAC with wildcards
Port Settings	Enable/disable, link speed control, port isolation, EEE (802.3az) management, Port Mirroring
L3 Features	Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address
Supported services	EtherNet/IP, PROFINET (class B), SNMP V2, V3, LLDP, Network Management
QOS	Port priority, DSCP priority, 802.1p priority, TOS
Operating temperature	-40 °C to 75 °C
Operating humidity	5% to 95% non-condensing
Ingress Protection Rating	IP30
Bandwidth (Non-blocking)	20 Gbps
Forwarding rate	14.88 Mpps
Jumbo frame support	10000 bytes
